- SKU:
- MS132-0.16K
- UPC:
- 4013614400315
- Weight:
- 0.56 LBS
- Width:
- 1.77 in
- Height:
- 4.41 in
- Depth:
- 3.43 in
- Current Range:
- 0.10 to .016A
- Number of Poles:
- 3 Poles
- Terminal Type:
- Push-in Spring Terminals
- Trip Class:
- Class 10

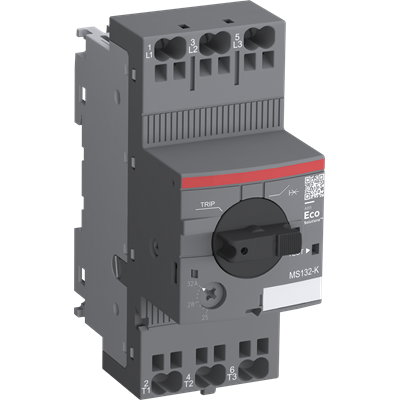

Representative image shown
MS132-0.16K
Manual Motor Starter with Push-in Spring Terminals (0.10-.016A)
$298.27
Factory New
ABB
ABB, Manual Motor Starter with Push-in Spring Terminals, 0.10 A to 0.16 A, 45mm, Providing fuse-less overload, short-circuit, and phase-failure protection for single- and three-phase applications
Representative image shown
Product Details
Complete Your Build
verified
Verified fit
These products are compatible with the
Auxiliary Contacts
Signaling Contacts
Shunt Trips
Undervoltage Releases
Enclosures
Mounting
Hardware
Shafts
Build My Enclosure
Total price: $0
Description
Description
The MS132-0.16K manual motor starter (also known as motor protection circuit breaker or manual motor protector) is a compact 45 mm width device with a rated operational current of Ie = 0.16 A with Push-in spring terminals. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The MS132-K manual motor starter offers a rated service short-circuit breaking capacity Ics = 100 kA at 400 VAC and trip class 10. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The MS132-K manual motor starter is suitable for three- and single-phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips and terminal spacers are available as accessory.
Specifications
Specifications
Technical |
|
| Rated Service Short-Circuit Breaking Capacity (Ics): |
(230 V AC) 100 kA
(250 V DC) 3 Poles in Series 10 kA
(400 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 100 kA
(690 V AC) 100 kA
|
| Rated Ultimate Short-Circuit Breaking Capacity (Icu): |
(230 V AC) 100 kA
(400 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 100 kA
(690 V AC) 100 kA
|
| Rated Instantaneous Short-Circuit Current Setting (Ii): | 2 A |
| Setting Range: | 0.10 ... 0.16 A |
| Rated Operational Power AC-3 (Pe): | (400 V) Three Phase 0.03 kW |
| Rated Operational Power AC-3e (Pe): | (400 V) Three Phase 0.03 kW |
| Rated Operational Voltage: |
Main Circuit 690 V AC
Main Circuit 250 V DC
|
| Rated Operational Current (Ie): | 0.16 A |
| Rated Operational Current AC-3 (Ie): | 0.16 A |
| Rated Operational Current AC-3e (Ie): | 0.16 A |
| Rated Operational Current DC-5 (Ie): | 0.16 A |
| Rated Frequency (f): |
Main Circuit 50 Hz
Main Circuit 60 Hz
|
| Operating Frequency (fsw): | 0 ... 400 Hz |
| Rated Impulse Withstand Voltage (Uimp): | Main Circuit 6 kV |
| Rated Insulation Voltage (Ui): | 690 V |
| Power Loss: | at Rated Operating Conditions per Pole 0.7 ... 1.7 W |
| Number of Poles: | 3P |
| Conventional Free-air Thermal Current (Ith): | Main Circuit 0.16 A |
| Degree of Protection: |
Housing IP20
Main Circuit Terminals IP20
|
| Pollution Degree: | 3 |
| Electrical Durability: | 50000 cycle |
| Mechanical Durability: | Nr. Operations 100000 cycle |
| Terminal Type: | Push-in Spring Terminals |
| Connecting Capacity Main Circuit: |
Flexible with Ferrule 1/2x 0.5 ... 4 mm²
Flexible with Insulated Ferrule 1x 0.5 ... 4 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 2.5 mm²
Flexible 1/2x 0.75 ... 4 mm²
Solid 1/2x 1 ... 2.5 mm²
Stranded 1/2x 1 ... 6 mm²
|
| Wire Stripping Length: | Main Circuit 12 mm |
| Recommended Screw Driver: |
Pozidriv 2
|
| Mounting Position: | 1 ... 6 |
| Mounting on DIN Rail: |
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
|
| Minimum Mounting Distance: |
Electrical Conductive Board, Horizontal - Up to 400 V 0 mm
Electrical Conductive Board, Horizontal - Up to 690 V 1.5 mm
Electrical Conductive Board, Vertical 75 mm
Other Device Same Type, Horizontal 0 mm
Other Device Same Type, Vertical 150 mm
|
| Contact Position Indication: | ON / OFF / TRIP |
| Standards: |
IEC/EN 60947-1
IEC/EN 60947-2
IEC/EN 60947-4-1
UL 60947-1
UL 60947-4-1
IEC 60335-2-40 A2L
|
| Remarks: | UL508 Self-Protected Combination Motor Controller (Type E) in combination with terminal spacer TS1-M3-K |
Technical UL/CSA |
|
| Short-Circuit Current Rating (SCCR): |
Manual Self-Protected Combination Controllers (Type E), (480Y / 277 V AC) 65 kA
Manual Self-Protected Combination Controllers (Type E), (600Y / 347 V AC) 47 kA
Any UL Listed Fuses or Circuit-Breakers, Group Installations (480 V AC) 65 kA
Any UL Listed Fuses or Circuit-Breakers, Group Installations (600 V AC) 47 kA
Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (480 V AC) 65 kA
Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (600 V AC) 47 kA
Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (480Y / 277 V AC) 65 kA
Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (600Y / 347 V AC) 47 kA
|
| Maximum Operating Voltage UL/CSA: | Main Circuit 600 V AC |
| Full Load Amps Motor Use: |
(200 V AC) Three Phase 0.16 A
(208 V AC) Three Phase 0.16 A
(220 ... 240 V AC) Three Phase 0.16 A
(440 ... 480 V AC) Three Phase 0.16 A
(550 ... 600 V AC) Three Phase 0.16 A
|
| Locked Rotor Amps: |
(200 V AC) Three Phase 0.96 A
(208 V AC) Three Phase 0.96 A
(220 ... 240 V AC) Three Phase 0.96 A
(440 ... 480 V AC) Three Phase 0.96 A
(550 ... 600 V AC) Three Phase 0.96 A
|
| General Use Rating UL/CSA: | (600 V AC) 0.16 A |
| Connecting Capacity Main Circuit UL/CSA: |
Stranded 1/2x 18-10 AWG
Stranded 1x 8 AWG
|
Environmental |
|
| Ambient Air Temperature: |
Around the Enclosure 0 ... +40 °C
Operation -25 ... +70 °C
Operation Compensated -25 ... +60 °C
Storage -50 ... +80 °C
|
| Ambient Air Temperature Compensation: | Yes |
| Maximum Operating Altitude Permissible: | 2000 m |
| Resistance to Shock acc. to IEC 60068-2-27: | 11 ms Pulse 25g |
| Resistance to Vibrations: | 5g 3 ... 150 Hz |
