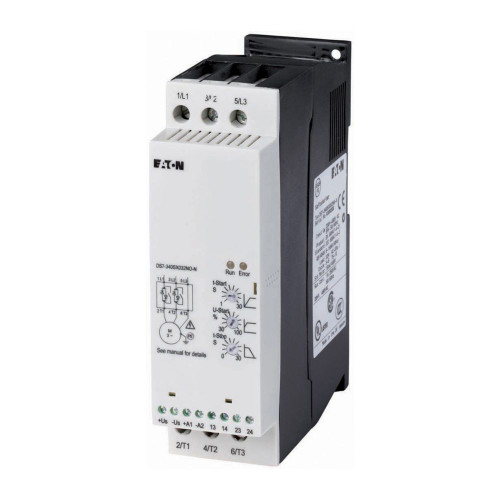

Eaton DS7 soft start controller, Frames 3 and 4, 100 A, 75 hp, 480 V, 24 Vdc, Internal bypass, SmartWire-DT, IP20, HKD3350 circuit breaker, 350 A class RK5 max fuse, Generation 7 series
Specifications
Specifications
| Product Name | Eaton DS7 soft start controller |
|---|---|
| Catalog Number | DS7-34DSX100N0-D |
| UPC | 786685856490 |
| Product Length/Depth | 7 in |
| Product Height | 4 in |
| Product Width | 6.25 in |
| Product Weight | 3 lb |
| Compliances | C-Tick Compliant CE Marked |
| Certifications | UL Listed EN 60947-4-2 CSA Certified IEC 60947-4-2 |
| Catalog Notes | No internal radio interference suppression filters |
| Product Type | Soft start controller |
| Bypass | Internal |
| Control voltage | 24 V DC |
| Horsepower | 75 HP |
| Phase | Three-phase mains supply voltage |
| Voltage rating | 480 V |
| Fuse size | 350 A class RK5 max |
| Circuit breaker type | HKD3350 |
| Frame size | 3 4 |
| Environmental rating | IP20 |
| Series | Generation 7 |
| Rated operational current | 100 A |
| Wire type | SmartWire-DT |
