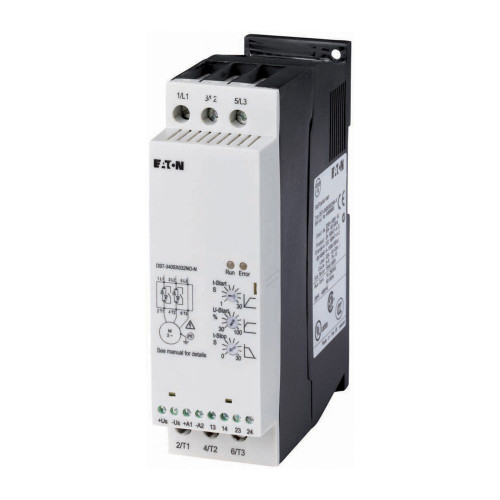

Eaton DS7 soft start controller, Frames 3 and 4, 160 A, 125 hp, 480 V, 110/230 Vac, Internal bypass, IP20, HLD3450 circuit breaker, 500 A class RK5 max fuse, Generation 7 series
Specifications
Specifications
| Product Name | Eaton DS7 soft start controller |
|---|---|
| Catalog Number | DS7-342SX160N0-N |
| UPC | 786685856438 |
| Product Length/Depth | 8.46 in |
| Product Height | 7.01 in |
| Product Width | 4.25 in |
| Product Weight | 8.16 lb |
| Compliances | CE Marked C-Tick Compliant |
| Certifications | CSA Certified EN 60947-4-2 IEC 60947-4-2 UL Listed |
| Catalog Notes | No internal radio interference suppression filters |
| Product Type | Soft start controller |
| Bypass | Internal |
| Control voltage | 110/230 V AC |
| Horsepower | 125 HP |
| Phase | Three-phase mains supply voltage |
| Voltage rating | 480 V |
| Fuse size | 500 A class RK5 max |
| Circuit breaker type | HLD3450 |
| Frame size | 4 3 |
| Environmental rating | IP20 |
| Series | Generation 7 |
| Rated operational current | 160 A |
