- SKU:
- PCJ12104
- UPC:
- 623980138282
- Weight:
- 5.00 LBS
- Dimensions:
- 12in x 10in x 4in
- Material:
- Polycarbonate
- Enclosure Type:
- Wall Mounted
- Cover Type:
- Opaque
- Closure Type:
- 4-Screw Lift-Off
- Mounting Type:
- Nonmetal Feet

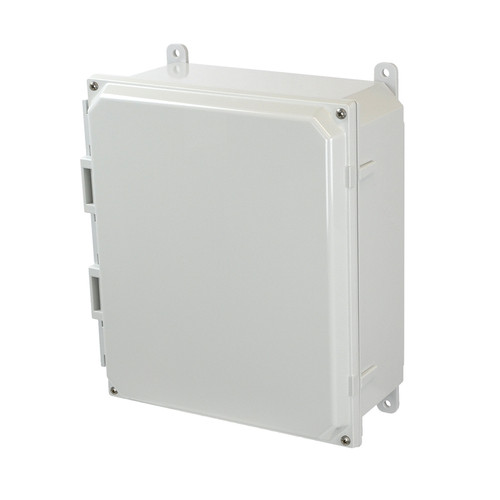

Representative image shown
PCJ12104
Polycarbonate enclosure with 4-screw lift-off cover
$78.75
Factory New
Hammond Manufacturing
Hammond, PCJ Series, Type 4X Polycarbonate Junction Box , Lift-Off Screw Cover, 12x10x4, UL 508A Type 1, 2, 3, 3R, 4, 4X, 12 and 13
Representative image shown
Trusted Accessories
Versions (16)
Product Details
Designed to insulate and protect controls and componets in both indoor and outdoor conditionsIdeal for industrial pump controls, waste water, irrigation control along with solar/wind and chemical plants
Finish
Finish
Polycarbonate material has a Light gray finishOptional inner panels are available in white powder coated finished steel or unfinished aluminum, or Fiberglass
Construction
Construction
Injection mouldedpolycarbonate thermoplastic enclosure with matching cover is easily punched, cut, or drilledEnhanced UV inhibitors protect against outdoor weatheringThreaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is includedStainless steel 316 screw fastenersEnclosure available with clear Polycarbonate coverCaptive oil resistant gasket provides a positive sealAvailable with Polycarbonate flange or foot mount brackets for multi-directional mountingOperating temperatures between 130C and - 35 C (266F to - 31 F)Impact index of 16 J (12 ft/lb)For corrosion resistance information, please refer to table in the Technical Information section
Standards
Standards
UL 508 Type 1, 2, 3, 4, 4X, 12 and 13CSA Type 1, 2, 3, 4, 4X, 12 and 13Complies withNEMA Type 1, 2, 3, 4, 4X, 12 and 13IEC 60529, IP66Flamability V-O per UL 94UV rating (f1) per UL746C - UV stabilized for outdoor useComplient with RoHS directive
Documents for
NEMA Rating for
+
| Environments | Type 1 | Type 12 | Type 3R | Type 4 | Type 4X |
|---|---|---|---|---|---|
| Indoor use only | |||||
| Indoor and outdoor use | |||||
| Falling liquids and light splashes | |||||
| Nonhazardous dust, lint, and fibers | |||||
| Washdowns and splashing water | |||||
| Oil and coolant seepage | |||||
| Corrosive agents | |||||
|
Hazardous locations (Class I, Division 1 and 2) |
