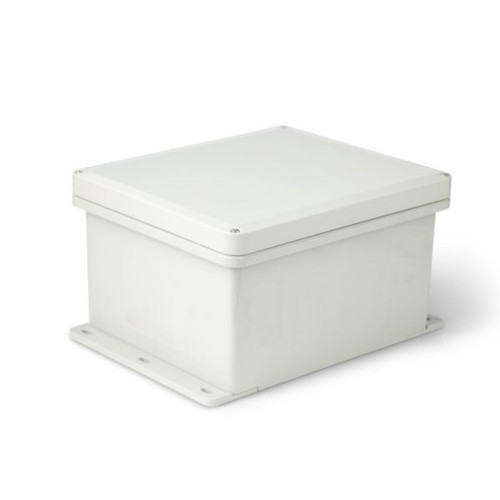

PCJ12106F

• Designed to insulate and protect controls and components in both indoor and outdoor conditions
• Ideal for industrial pump controls, waste water, irrigation control along with solar/wind and chemical plants

• UL 508A Type 1, 2, 3, 3R, 4, 4X, 12 and 13
• cUL Type 1, 2, 3, 3R, 4, 4X, 12 and 13per CSA 22.2 No. 94
• Complies with
  • NEMA Type 1, 2, 3, 3R, 4, 4X, 12 and 13
  • IEC 60529, IP66
  • Flammability V-O per UL 94
  • UV rating (f1) per UL746C - UV stabilized for outdoor use
  • Compliant with RoHS directive

• Injection moulded polycarbonate thermoplastic  enclosure with matching cover is easily punched, cut, or drilled
• Enhanced UV inhibitors protect against outdoor weathering
• Threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is included
• Stainless steel 316 screw fasteners
• Lift-off Cover is fixed with 4 stainless steel screws.

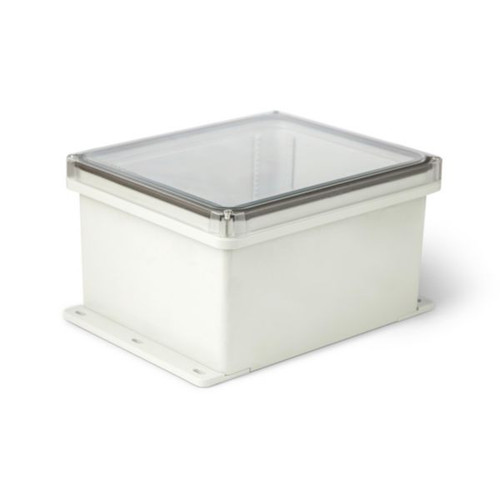

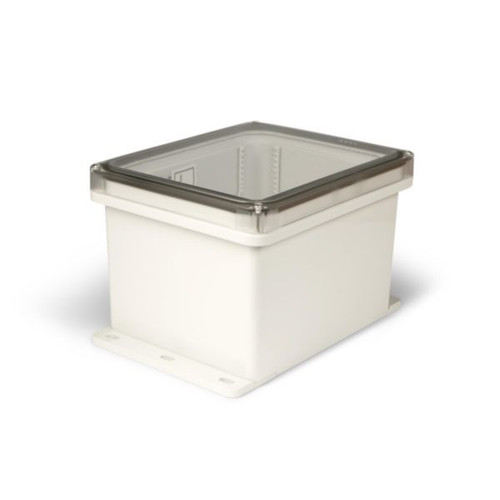

• Enclosure available with clear Polycarbonate cover
• Captive oil resistant gasket provides a positive seal
• Available with Polycarbonate flange or foot mount brackets for multi-directional mounting
• Operating temperatures between 130°C and - 35 °C (266°F to - 31 °F)
• Impact index of  16 J (12 ft/lb)

• Polycarbonate  material has a light gray finish
• Optional inner panels are available in white powder coated finished steel, unfinished aluminum, or fiberglass
