Specifications
Specifications

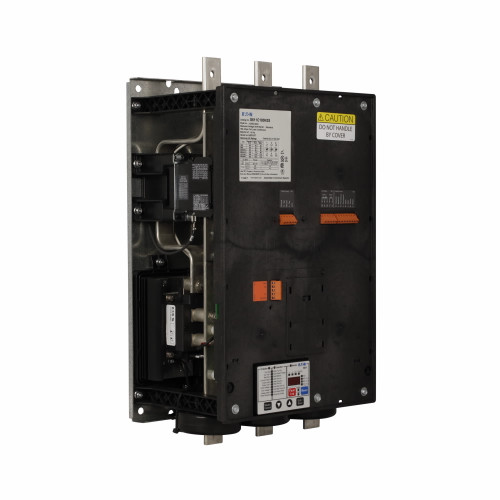

| Product Name | Eaton S811+/S801+ soft starter |
|---|---|
| Catalog Number | S611E302N3S |
| UPC | 786685480374 |
| Product Length/Depth | 9.54 in |
| Product Height | 31.15 in |
| Product Width | 17.56 in |
| Product Weight | 102 lb |
| Certifications | CSA file No. 3211-06 UL Listed IEC 60947-4-2 |
| Product Type | Soft starter |
| Amperage Rating | 302 A |
| Horsepower | 250 HP |
| Phase | Three-phase |
| User interface | LCD |
| Voltage rating | 480 V |
| Frequency rating | 47-63 Hz |
| Fuse size | Class K5 Class RK5 Class J |
| Circuit breaker type | FDC |
| Frame size | E |
| Number of conductors | 2 |
| Operating temperature - max | 50°C |
| Full load current range | 151-302 FLA |
| Operating voltage | 108-132 V |
| Wire size | #22-12 AWG |
| Number of slots | 2 |
| Mounting method | Vertical |
| Operating temperature - min | -20 °C |
