Specifications
Specifications

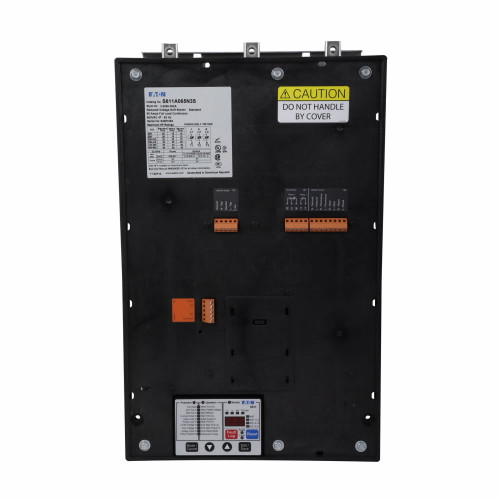

| Product Name | Eaton S811+/S801+ soft starter |
|---|---|
| Catalog Number | S611A065N3S |
| UPC | 786685480305 |
| Product Length/Depth | 7.64 in |
| Product Height | 19.45 in |
| Product Width | 11.58 in |
| Product Weight | 24 lb |
| Certifications | CSA file No. 3211-06 UL Listed IEC 60947-4-2 |
| Product Type | Soft starter |
| Amperage Rating | 65 A |
| Horsepower | 50 HP |
| Phase | Three-phase |
| User interface | LCD |
| Voltage rating | 480 V |
| Frequency rating | 47-63 Hz |
| Fuse size | Class RK5 Class K5 Class J |
| Circuit breaker type | FDC |
| Frame size | A |
| Number of conductors | 1 |
| Operating temperature - max | 50°C |
| Full load current range | 32.5-65 FLA |
| Operating voltage | 130-600 V |
| Wire size | #14-2/0 AWG |
| Number of slots | 2 |
| Mounting method | Vertical |
| Operating temperature - min | -20 °C |
