Specifications
Specifications

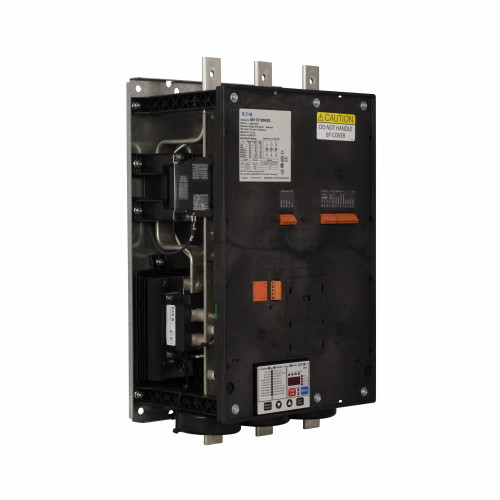

| Product Name | Eaton S811+/S801+ soft starter |
|---|---|
| Catalog Number | S611C180N3S |
| UPC | 786685480350 |
| Product Length/Depth | 21.01 in |
| Product Height | 8.57 in |
| Product Width | 11.58 in |
| Product Weight | 33 lb |
| Certifications | UL Listed IEC 60947-4-2 CSA Certified IEC 60947-2 UL 1077 CSA Std. C22.2 No.235 |
| Product Type | Soft starter |
| Amperage Rating | 180 A |
| Horsepower | 150 HP |
| Number of poles | Three-pole |
| Phase | Three-phase |
| Type | Non-combination |
| Voltage rating | 600 V |
| Wiring connection | Inline or Inside-the-Delta wiring configuration |
| Frame size | C |
| Communication | Modbus with communication options |
| Protection | IP20 |
