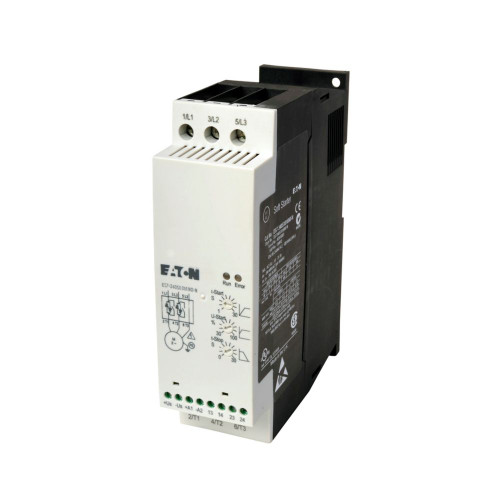

Eaton DS7 soft start controller, 14 second ramp, one start per hour, 300% current limit at 40°C, 15.2 A, 3 hp at 200 V, 5 hp at 230 V, 10 hp at 480 V, HFD3035 max breaker, 25 A Class RK5 max fuse
Specifications
Specifications
| Product Name | Eaton DS7 soft start controller |
|---|---|
| Catalog Number | DS7-340SX016N0-N |
| UPC | 786685457611 |
| Product Length/Depth | 7 in |
| Product Height | 6 in |
| Product Width | 2.5 in |
| Product Weight | 2 lb |
| Product Type | Soft start controller |
| Amperage Rating | 15.2 Amps |
| Type | 14 second ramp, one start per hour, 300% current limit at 40°C |
| Fuse size | 25 A class RK5 max |
| Circuit breaker type | HFD3035 |
| Rating | 3 HP at 200 V, 5 HP at 230 V, 10 HP at 480 V |
