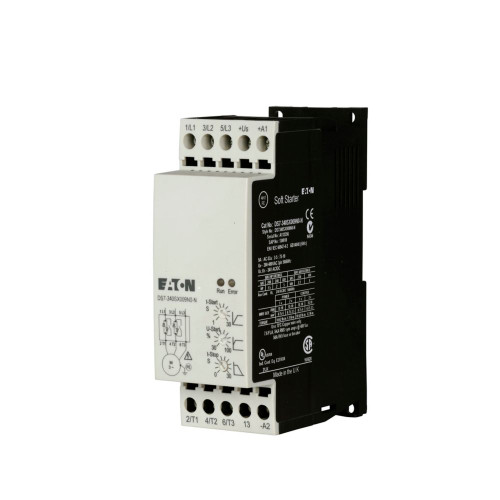

Eaton DS7 soft start controller, 12 second ramp, one start per hour, 300% current limit at 40°C, 7.8A, 2 hp at 200 V, 2 hp at 230 V, 5 hp at 480 V, HFD3020 max breaker, 20 A Class RK5 max fuse
Specifications
Specifications
| Product Name | Eaton DS7 soft start controller |
|---|---|
| Catalog Number | DS7-340SX009N0-N |
| UPC | 786685457598 |
| Product Length/Depth | 7 in |
| Product Height | 2.5 in |
| Product Width | 5.5 in |
| Product Weight | 0.9 lb |
| Product Type | Soft start controller |
| Amperage Rating | 7.8 Amps |
| Type | 12 second ramp, one start per hour, 300% current limit at 40°C |
| Fuse size | 20 A class RK5 max |
| Circuit breaker type | HFD3020 |
| Rating | 2 HP at 200 V, 2 HP at 230 V, 5 HP at 480 V |
