Specifications
Specifications
| Product Name |

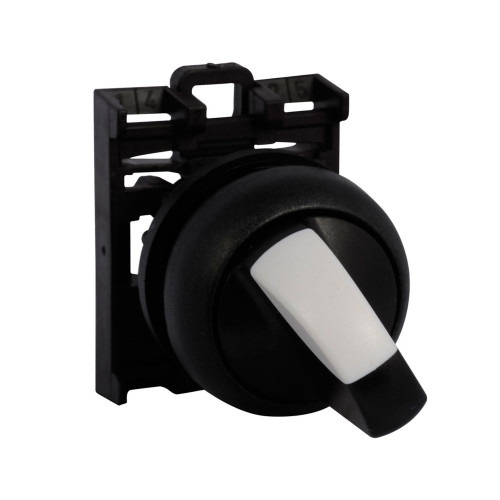

Eaton M22 modular pushbutton
|
|---|---|
| Catalog Number |
M22S-WRK3
|
| UPC |
786685281094
|
| Product Length/Depth |
1.17 in
|
| Product Height |
1.06 in
|
| Product Width |
1.17 in
|
| Product Weight |
0.05 lb
|
| Manufacturer Warranty |
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
|
| Compliances |
CE Marked
GoST-R Bureau Veritas |
| Certifications |
CSA Certified
CCC Marked Lloyd's Register Certified |
| Catalog Notes |
Includes contact block mounting adapter.
|
| Product Type |
Modular pushbutton
|
| Type |
Selector switch
|
| Bezel |
Black
|
| Operating Cycles |
100,000 operations
|
| Actuator function |
Maintained
|
| Button color |
Black
|
| Actuator |
Knob
|
| Illumination |
Non-illuminated
|
| Environmental rating |
IP66, NEMA 4X, NEMA 13
|
| Series |
M22
|
| Number of positions |
3
|
| Size |
22.5 mm
|
NEMA Rating for
+
| Environments | Type 1 | Type 12 | Type 3R | Type 4 | Type 4X |
|---|---|---|---|---|---|
| Indoor use only | |||||
| Indoor and outdoor use | |||||
| Falling liquids and light splashes | |||||
| Nonhazardous dust, lint, and fibers | |||||
| Washdowns and splashing water | |||||
| Oil and coolant seepage | |||||
| Corrosive agents | |||||
|
Hazardous locations (Class I, Division 1 and 2) |
