Specifications
Specifications
| Product Name |

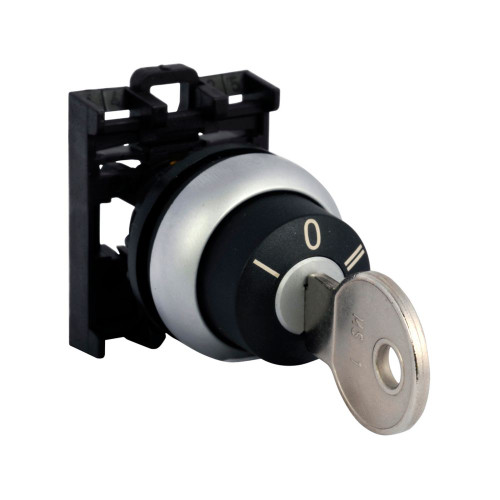

Eaton M22 modular pushbutton
|
|---|---|
| Catalog Number |
M22-WRS3-MS3-A4
|
| UPC |
786685279787
|
| Product Length/Depth |
7 in
|
| Product Height |
1.5 in
|
| Product Width |
5 in
|
| Product Weight |
0.13 lb
|
| Manufacturer Warranty |
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
|
| Compliances |
GoST-R
CE Marked Bureau Veritas |
| Certifications |
CCC Marked
CSA Certified Lloyd's Register Certified |
| Catalog Notes |
Includes one key and one contact block mounting adapter. Removal positions can be modified in the field using coding adapters.
|
| Product Type |
Modular pushbutton
|
| Type |
Selector switch
|
| Bezel |
Silver
|
| Operating Cycles |
100,000 operations
|
| Actuator function |
Maintained, return from right, key removable left/center
|
| Button color |
Black
|
| Actuator |
Key operated
|
| Size |
22.5 mm
|
| Environmental rating |
IP66, NEMA 4X, NEMA 13
|
| Illumination |
Non-illuminated
|
| Key code |
MS3
|
| Number of positions |
3
|
| Series |
M22
|
Related Products
Warranty Information
Manufacturer Warranty: Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
