- SKU:
- MS165-65
- UPC:
- 4013614486111
- Weight:
- 2.16 LBS
- Width:
- 2.17 in
- Height:
- 5.62 in
- Depth:
- 4.81 in
- Number of Poles:
- 3 Pole
- Rated Operational Current:
- 65 Amperage
Representative image shown

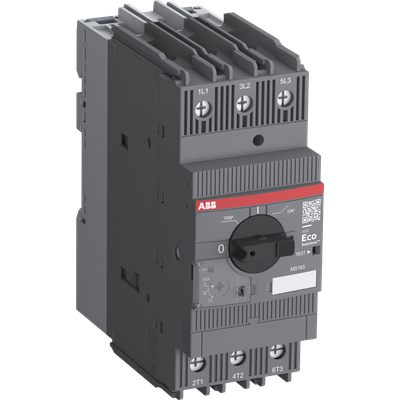

MS165-65
Manual Motor Starter (52-65A)
$441.27
Factory New
ABB
Compact and powerful range for motor protection up to 45 kW (400 V) / 80 A in width of 55 mm. They offer a reliable protection for motors in the event of overload or phase failure. The devices have trip class 10.
Representative image shown
Product Details
Complete Your Build
verified
Verified fit
These products are compatible with the
Auxiliary Contacts
Signaling Contacts
Shunt Trips
Undervoltage Releases
Busbars
Shafts
Build My Enclosure
Total price: $0
Description
Description
MS165 is a compact and powerful range for motor protection up to 45 kW (400 V) / 80 A in width of 55 mm. They offer a reliable protection for motors in the event of overload or phase failure. The devices have trip class 10. This type has also a clear and reliable indication of fault in a separate window in the event of short-circuit tripping. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter (also known as motor protection circuit breaker or manual motor protector) is suitable for three- and single phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, power in-feed blocks are available as accessory. These are suitable throughout the MS116/MS132/MS165 range.
Specifications
Specifications
Technical |
|
| Rated Service Short-Circuit Breaking Capacity (Ics): |
(230 V AC) 30 kA
(250 V DC) 3 Poles in Series 100 kA
(400 V AC) 30 kA
(440 V AC) 30 kA
(500 V AC) 20 kA
(690 V AC) 6 kA
|
| Rated Ultimate Short-Circuit Breaking Capacity (Icu): |
(230 V AC) 50 kA
(250 V DC) 100 kA
(400 V AC) 50 kA
(440 V AC) 45 kA
(500 V AC) 20 kA
(690 V AC) 8 kA
|
| Rated Instantaneous Short-Circuit Current Setting (Ii): | 975 A |
| Setting Range: | 52 ... 65 A |
| Rated Operational Power AC-3 (Pe): | (400 V) Three Phase 30 kW |
| Rated Operational Power AC-3e (Pe): | (400 V) Three Phase 30 kW |
| Rated Operational Voltage: |
Main Circuit 690 V AC
Main Circuit 250 V DC
|
| Rated Operational Current (Ie): | 65 A |
| Rated Operational Current AC-3 (Ie): | 65 A |
| Rated Operational Current AC-3e (Ie): | 65 A |
| Rated Operational Current DC-5 (Ie): | 65 A |
| Rated Frequency (f): |
Main Circuit 50 Hz
Main Circuit 60 Hz
|
| Operating Frequency (fsw): | 0 ... 415 Hz |
| Rated Impulse Withstand Voltage (Uimp): | Main Circuit 8 kV |
| Rated Insulation Voltage (Ui): | 1000 V |
| Power Loss: | at Rated Operating Conditions per Pole 5.14 ... 8.02 W |
| Number of Poles: | 3P |
| Conventional Free-air Thermal Current (Ith): | Main Circuit 65 A |
| Degree of Protection: |
Housing IP20
Main Circuit Terminals IP10
|
| Pollution Degree: | 3 |
| Electrical Durability: | 25000 cycle |
| Mechanical Durability: | Nr. Operations 50000 cycle |
| Terminal Type: | Screw Terminals |
| Connecting Capacity Main Circuit: |
Flexible with Ferrule 1/2x 1 ... 35 mm²
Flexible with Insulated Ferrule 1/2x 1 ... 35 mm²
Flexible 1/2x 1 ... 35 mm²
Rigid 1/2x 1 ... 4 mm²
Solid 1/2x 1 ... 4 mm²
Stranded 1/2x 1 ... 50 mm²
|
| Tightening Torque: | Main Circuit 4 N·m |
| Wire Stripping Length: | Main Circuit 16 mm |
| Recommended Screw Driver: | Pozidriv 2 |
| Mounting Position: | 1 ... 6 |
| Mounting on DIN Rail: |
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
|
| Minimum Mounting Distance: |
Electrical Conductive Board, Horizontal - Up to 1000 V 1.5 mm
Electrical Conductive Board, Horizontal - Up to 400 V 0 mm
Electrical Conductive Board, Horizontal - Up to 690 V 1.5 mm
Electrical Conductive Board, Vertical 75 mm
Other Device Same Type, Horizontal 0 mm
Other Device Same Type, Vertical 150 mm
|
| Contact Position Indication: | ON / OFF / TRIP |
| Standards: |
CSA 22.2 No. 14
IEC/EN 60947-1
IEC/EN 60947-2
IEC/EN 60947-4-1
UL 60947-4-1
|
