- SKU:
- SCE-36EL2412LPLG
- Weight:
- 77.00 LBS
- Dimensions:
- 36in x 24in x 12in

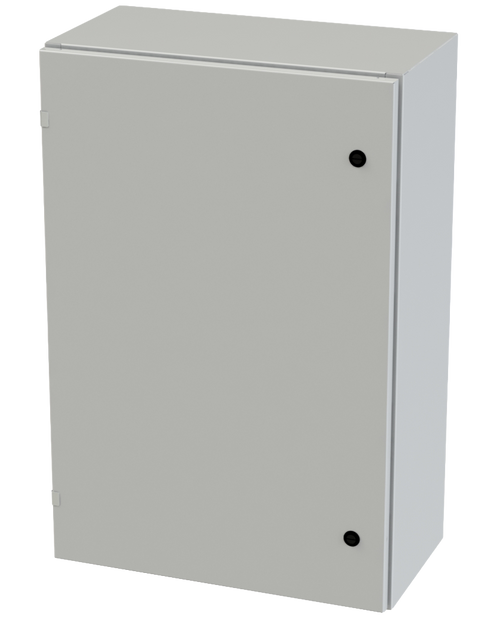

Representative image shown
SCE-36EL2412LPLG
EL Enclosure
$420.68
Factory New
Saginaw Control & Engineering
Representative image shown
Trusted Accessories
Product Details
Complete Your Build
verified
Verified fit
These products are compatible with the
Inner Panels
Mounting
Ventilation
Shields
Build My Enclosure
Total price: $0
Construction
Construction
SCE-36EL2412LPLG Saginaw Control & Engineering 36 x 24 x 12 EL Enclosure
- 0.075 In. carbon steel.
- Seams continuously welded and ground smooth.
- Flange trough collar around all sides of door opening.
- Pour in place oil & water resistant gasket
- Collar studs 3/8-16 provided for mounting optional panels.
- Concealed hinges.
- Removable and interchangeable doors.
- Black quarter turn latches.
- Latches are opened or closed with a screwdriver.
- Mounting holes in back of enclosure.
- Mounting hardware, sealing washer and hole plug included.
- Removable print pocket furnished if height and width of enclosure is greater than 12 inches.
- Ground studs on door and body.
Application
Application
SCE-36EL2412LPLG Saginaw Control & Engineering 36 x 24 x 12 EL Enclosure
Designed to house electrical and electronic controls, instruments and components. Provides protection from dust, oil and water. For outdoor application a drip shield and drain vent is recommended.
Options
Options
SCE-36EL2412LPLG Saginaw Control & Engineering 36 x 24 x 12 EL Enclosure
- Optional tamper-resistant inserts are available.
- Optional mounting feet available.
- Door hardware available.
- Interchangeable latches and handles available in the accessory section.
Finish
Finish
SCE-36EL2412LPLG Saginaw Control & Engineering 36 x 24 x 12 EL Enclosure
RAL 7035 gray powder coating inside and out. Optional sub-panels are powder coated white.
Industry Standards
Industry Standards
SCE-36EL2412LPLG Saginaw Control & Engineering 36 x 24 x 12 EL Enclosure
- NEMA Type 3R, 4, 12 and Type 13
- UL Listed Type 3R, 4 and 12
- CSA Type 3R, 4 and 12
- IEC 60529
- IP 66
NEMA Rating for
+
| Environments | Type 1 | Type 12 | Type 3R | Type 4 | Type 4X |
|---|---|---|---|---|---|
| Indoor use only | |||||
| Indoor and outdoor use | |||||
| Falling liquids and light splashes | |||||
| Nonhazardous dust, lint, and fibers | |||||
| Washdowns and splashing water | |||||
| Oil and coolant seepage | |||||
| Corrosive agents | |||||
|
Hazardous locations (Class I, Division 1 and 2) |
