- SKU:
- SCE-42EL3612LP
- Weight:
- 123.00 LBS
- Width:
- 36.00 in
- Height:
- 42.00 in
- Depth:
- 12.00 in
- Dimensions:
- 42in x 36in x 12in
- Material:
- Carbon Steel
- Enclosure Type:
- Wall Mounted
- Cover Type:
- Opaque
- Closure Type:
- Quarter Turn Latch
- Mounting Type:
- Through Holes

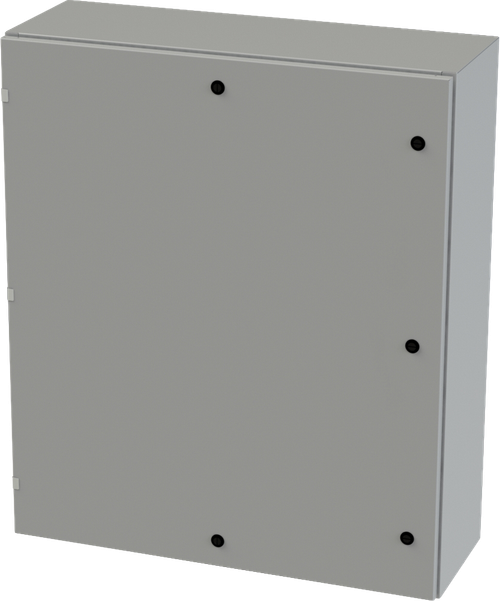

Representative image shown
SCE-42EL3612LP
Carbon Steel Enclosure with Hinged Cover and Quarter Turn Latches
$595.78
Factory New
Saginaw Control & Engineering
Saginaw, EL Enclosure, 42x36x12, 0.075 In. carbon steel, Black quarter turn latches, NEMA Type 3R, 4, 12 and Type 13
Representative image shown
Versions (7)
Product Details
Construction
Construction
- 0.075 In. carbon steel.
- Seams continuously welded and ground smooth.
- Flange trough collar around all sides of door opening.
- Pour in place oil & water resistant gasket
- Collar studs 3/8-16 provided for mounting optional panels.
- Concealed hinges.
- Removable and interchangeable doors.
- Black quarter turn latches.
- Latches are opened or closed with a screwdriver.
- Mounting holes in back of enclosure.
- Mounting hardware, sealing washer and hole plug included.
- Removable print pocket furnished if height and width of enclosure is greater than 12 inches.
- Ground studs on door and body.
Application
Application
Designed to house electrical and electronic controls, instruments and components. Provides protection from dust, oil and water. For outdoor application a drip shield and drain vent is recommended.
Finish
Finish
ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.
Standards
Standards
- NEMA Type 3R, 4, 12 and Type 13
- UL Listed Type 3R, 4 and 12
- CSA Type 3R, 4 and 12
- IEC 60529
- IP 66
NEMA Rating for
+
| Environments | Type 1 | Type 12 | Type 3R | Type 4 | Type 4X |
|---|---|---|---|---|---|
| Indoor use only | |||||
| Indoor and outdoor use | |||||
| Falling liquids and light splashes | |||||
| Nonhazardous dust, lint, and fibers | |||||
| Washdowns and splashing water | |||||
| Oil and coolant seepage | |||||
| Corrosive agents | |||||
|
Hazardous locations (Class I, Division 1 and 2) |
