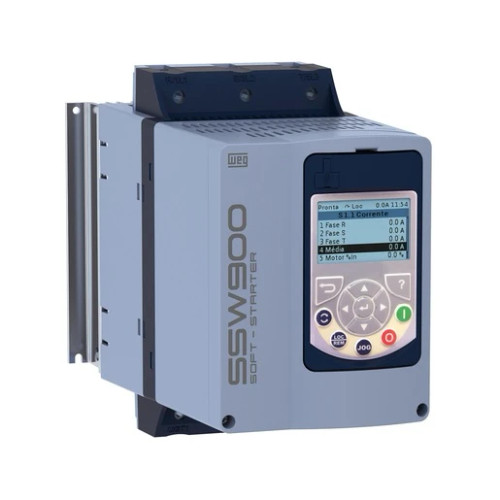

Soft-starters are drives dedicated to the smooth acceleration and deceleration of three-phase electric motors, by controlling the voltage applied to the motor. With proper adjustment of the variables, the torque produced is adjusted to the load requirement, thus ensuring that the requested current is the minimum required for starting. The SSW900 is a soft-starter with three-phase motor control, built-in by-pass and torque control. Intended to drive motors from 10 to 1.400 A.
Specifications
Specifications
| Rated current | 130 A |
|---|---|
| Power supply | 400-690 V |
| Enclosure | IP00 |
| Frame | C |
| Starting duty cycle | AC-53b 3-30:1170 |
| Starting regime (with ventilation kit) | AC-53b 3-30:330 |
| Standard (3 leads) | Yes |
| Inside delta (6 leads) | Yes |
| SoftPLC (ladder programming) | Yes, 4K bytes |
| Voltage ramp | Yes |
| Voltage ramp and current limit | Yes |
| Current limit | Yes |
| Current limitation ramp | Yes |
| Pump control | Yes |
| Torque control | Yes |
| Direct on line start | Yes |
| Product certification | CE and EAC |
| Parameterization via trimpots and dip switches | No |
| Parameterization via keypad | Yes |
| Parameterization via software | WPS |
| Modbus-RTU RS-232 | No |
| Modbus-RTU RS-485 | Available with optional |
| Modbus-RTU USB | Yes |
