WEG soft starters are fitted with micro processors. They are high-tech and were designed to ensure the highest performance during starts and stops of induction motors.
Soft-Starters are electronic starters designed to accelerate, deccelerate and protect three-phase induction motors, controlling the voltage applied on the motor.

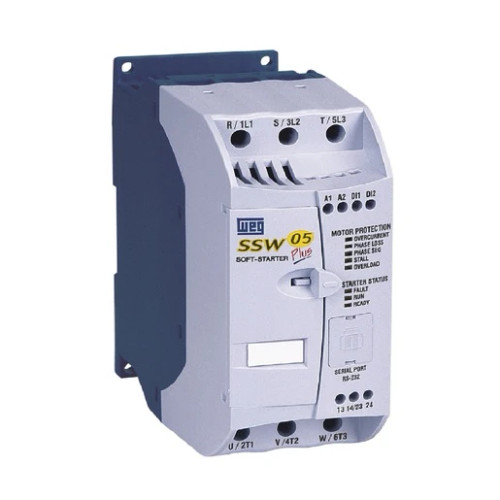

The SSW05 Plus Micro Soft-Starters, with DSP control (Digital Signal Processor) have been designed to supply an excellent performance during starting and stopping electric motors with excellent cost/benefit ratio.
The Operator Interface allows easy parameter setting, simplyfying the start-up and operation activities.
The SSW05 Plus Micro Soft-Starters are compact, optimizating the space in electrical panels and incorporates all protections for the driven motor.
Specifications
| Rated current | 23 A |
|---|---|
| Power supply | 220-460 V |
| Enclosure | IP00 |
| Frame | 1 |
| Starting duty cycle | AC-53b 3-10:890 |
| Starting regime (with ventilation kit) | No |
| Standard (3 leads) | Yes |
| Inside delta (6 leads) | No |
| SoftPLC (ladder programming) | No |
| Voltage ramp | Yes |
| Voltage ramp and current limit | No |
| Current limit | No |
| Current limitation ramp | No |
| Pump control | No |
| Torque control | No |
| Direct on line start | No |
| Product certification | UL, CE, CS, IRAM and C-TICK |
| Parameterization via trimpots and dip switches | Yes |
| Parameterization via keypad | Available with optional |
| Parameterization via software | Superdrive G1 |
| Modbus-RTU RS-232 | Yes |
| Modbus-RTU RS-485 | No |
| Modbus-RTU USB | No |
