Specifications
Specifications
| Product Net Width | 45 mm |
|---|---|
| Product Net Height | 140 mm |
| Product Net Depth / Length | 114 mm |
| Product Net Weight | 0.4 kg |
| Rated Operational Voltage | 208 ... 600 V AC |
| Rated Control Supply Voltage (Us) | 24 V AC/DC |
| Rated Control Circuit Voltage (Uc) | 24 V DC |
| Rated Frequency (f) | 50/60 Hz Main Circuit 50 / 60 Hz |
| Rated Operational Power - In-Line Connection (Pe) | (230 V) 0.75 kW (400 V) 1.5 kW (500 V) 2.2 kW |
| Rated Operational Current - In-Line Connection (Ie) | 3.9 A |
| Service Factor Percentage | 100 % |
| Overload Protection | Recommended MS116 0.63...4.00 |
| Integrated Electronic Overload | No |
| Starting Capacity at Maximum Rated Current Ie | 4xIe for 6s |
| Ramp Time | 0 ... 20 second 1 ... 10 second |
| Initial Voltage During Start | 40 ... 70 % |
| Step Down Voltage Special Ramp | 100 ... 60 % |
| Current Limit Function | No |
| Switch for Inside Delta Connection | No |
| Run Signal Relay | Yes |
| By-pass Signal Relay | No |
| Fault Signal Relay | No |
| Overload Signal Relay | No |
| Signal indication completed start ramp (LED) | Green |
| Signal indication ready to start/standby ON (LED) | Green |
| Signal indication running R (LED) | Green |
| Signal indication ramping up/down (LED) | Green |
| Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time | 10 |
| Communication | FiledBusPlug(Optional) |
| Degree of Protection |
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
|
| Terminal Type | Screw Terminals |
| Connecting Capacity Main Circuit |
Rigid 1/2 x 0.75 ... 2.5 mm²
|
| Connecting Capacity Control Circuit | 1 x 0.75 ... 2.5 2 x 0.75 ... 2.5 mm² Rigid 1/2 x 0.75 ... 2.5 mm² |
| Connecting Capacity Supply Circuit | Rigid 1/2 x 0.75 ... 2.5 |
| Tightening Torque | Control Circuit 1 N·m Main Circuit 1 N·m Supply Circuit 1 N·m |

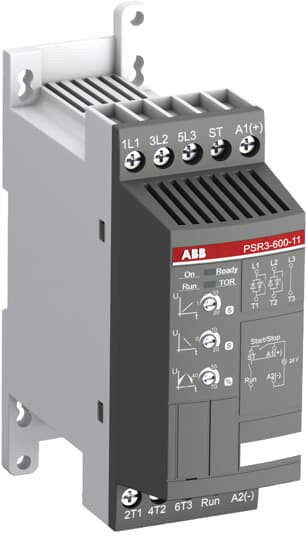

| Product Main Type | PSR3 |
| Function |
Soft start with voltage ramp
Soft stop with voltage ramp
|
| Horsepower Rating UL/CSA |
(200 ... 208 V AC) Three Phase 0.5 Hp
(220 ... 240 V AC) Three Phase 0.75 Hp
(440 ... 480 V AC) Three Phase 2 Hp
(550 ... 600 V AC) Three Phase 2 Hp
|
|
Maximum Operating Voltage UL/CSA
|
Main Circuit 600 V
|
| Tightening Torque UL/CSA |
Control Circuit 8.9 in·lb
Main Circuit 8.9
Supply Circuit 8.9 in·lb
|
|
Ambient Air Temperature
|
Operation -25 ... +60 °C
Storage -40 ... +70 °C
|
