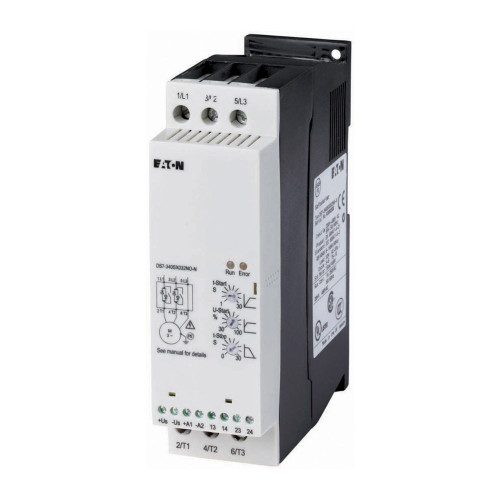

Eaton DS7 soft start controller, Frame 2, 32 A, 20 hp, 480 V, 24 Vdc, Internal bypass, SmartWire-DT, IP20, HFD3070 circuit breaker, 50 A class RK5 max fuse, Generation 7 series
Specifications
Specifications
| Product Name | Eaton DS7 soft start controller |
|---|---|
| Catalog Number | DS7-34DSX032N0-D |
| UPC | 786685856360 |
| Product Length/Depth | 5.6 in |
| Product Height | 4.96 in |
| Product Width | 1.77 in |
| Product Weight | 0.9 lb |
| Compliances | C-Tick Compliant CE Marked |
| Certifications | IEC 60947-4-2 EN 60947-4-2 UL Listed CSA Certified |
| Catalog Notes | No internal radio interference suppression filters |
| Product Type | Soft start controller |
| Bypass | Internal |
| Control voltage | 24 V DC |
| Horsepower | 20 HP |
| Phase | Three-phase mains supply voltage |
| Voltage rating | 480 V |
| Fuse size | 50 A class RK5 max |
| Circuit breaker type | HFD3070 |
| Frame size | 2 |
| Environmental rating | IP20 |
| Series | Generation 7 |
| Rated operational current | 32 A |
| Wire type | SmartWire-DT |
