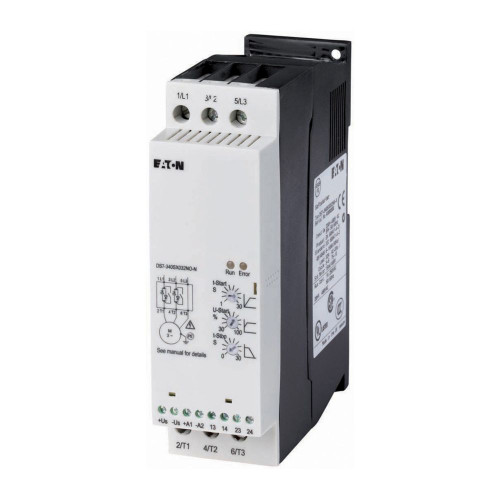

Eaton DS7 soft start controller, Frames 3 and 4, 81 A, 60 hp, 480 V, 110/230 Vac, Internal bypass, IP20, HJD3250 circuit breaker, 200 A class RK5 max fuse, Generation 7 series
Specifications
Specifications
| Product Name | Eaton DS7 soft start controller |
|---|---|
| Catalog Number | DS7-342SX081N0-N |
| UPC | 786685856407 |
| Product Length/Depth | 6.93 in |
| Product Height | 5.67 in |
| Product Width | 3.58 in |
| Product Weight | 0.75 lb |
| Compliances | CE Marked C-Tick Compliant |
| Certifications | UL Listed IEC 60947-4-2 CSA Certified EN 60947-4-2 |
| Catalog Notes | No internal radio interference suppression filters |
| Product Type | Soft start controller |
| Bypass | Internal |
| Control voltage | 110/230 V AC |
| Horsepower | 60 HP |
| Phase | Three-phase mains supply voltage |
| Voltage rating | 480 V |
| Fuse size | 200 A class RK5 max |
| Circuit breaker type | HJD3250 |
| Frame size | 3 4 |
| Environmental rating | IP20 |
| Series | Generation 7 |
| Rated operational current | 81 A |
