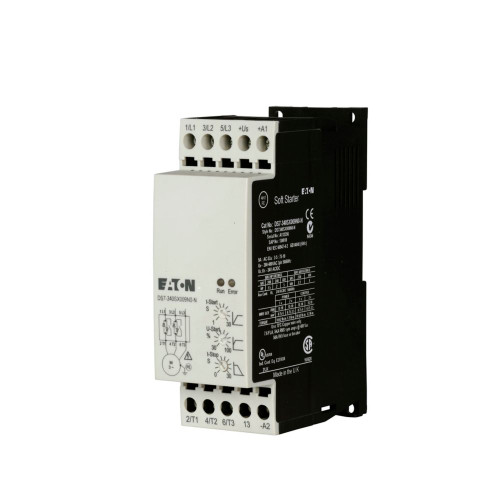

Eaton DS7 soft start controller, Standard Soft Starter with internal bypass, Inline or Inside-the-Delta wiring configuration, Frame 1, 12 A, 12 A, Three-pole, 480 V, 7.5 hp, Three-phase, IP20, Expanded temperature range down to -40°C
Specifications
Specifications
| Product Name | Eaton DS7 soft start controller |
|---|---|
| Catalog Number | DS7-340SX012N0-L |
| UPC | 786685887227 |
| Product Length/Depth | 6.5 in |
| Product Height | 2.5 in |
| Product Width | 4.5 in |
| Product Weight | 0.8 lb |
| Product Type | Soft start controller |
| Amperage Rating | 12 Amps |
| Horsepower | 7.5 HP |
| Number of poles | Three-pole |
| Phase | Three-phase |
| Type | Standard soft starter with internal bypass |
| Voltage rating | 480 V |
| Wiring connection | Inline or Inside-the-Delta wiring configuration |
| Frame size | 1 |
| Options | Expanded temperature range down to -40 °C |
| Protection | IP20 |
