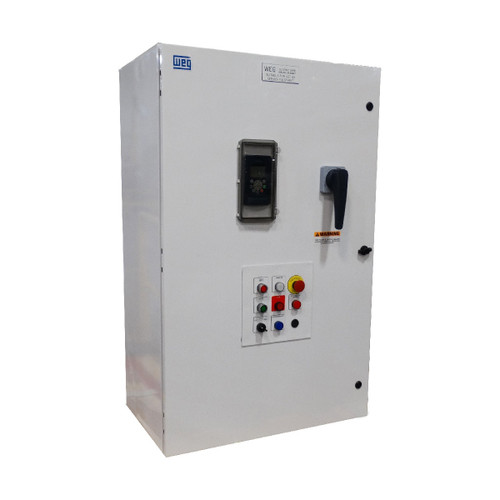

The WEG All Purpose Soft Starter (APS9) is designed to meet a wide range of soft starting application needs, having ratings for both the most demanding Heavy Duty (HD) applications and standard Normal Duty (ND) applications.
Specifications
Specifications
| Series | APS |
|---|---|
| Panel type | SOFT-STARTER |
| Horsepower (HP) | 800/700 HP |
| Enclosure type | Wall mount |
| Thermal Management | None |
| General enclosure options | Door Operator Plate |
| Main voltage | 460 V |
| Control Voltage | 120 V |
| Frequency | 60 Hz |
| SCCR rating | 65 kAIC |
| Disconnect switch type | Circuit Breaker rotary handle disconnect |
| Bypass type | AC3 |
| Control power transformer | 500 VA - Open |
| Reactor/Filter | None |
| Communication | None |
| Control options | Start Pushbutton, Stop Pushbutton, Local/OFF/Remote Selector Switch, Reset pushbutton, E-STOP pushbutton, Run light, Fault light, Keypad, Power on light, Pilot lights, Internal SSW/Bypass Selector and Control Board |
| Enclosure rating | Type 3R/4/12 |
| Nominal height | 2082.8 mm / 82.0 in |
| Nominal width | 838.2 mm / 33.0 in |
| Nominal depth | 508.0 mm / 20.0 in |
| Certification | UL/cUL |
