Specifications
Specifications
| Product Name |

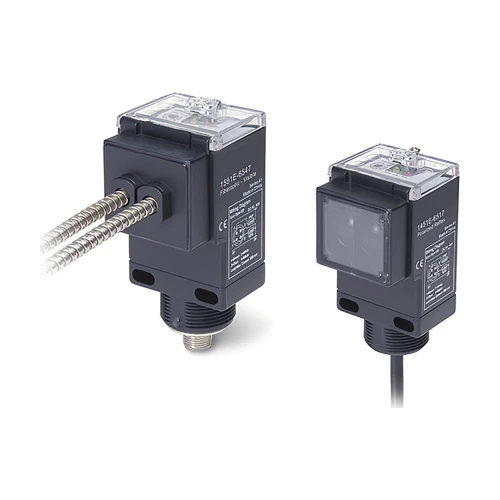

Eaton Enhanced 50 photoelectric sensor
|
|---|---|
| Catalog Number |
1250E-8504
|
| UPC |
782116112722
|
| Product Length/Depth |
1.91 in
|
| Product Height |
4.16 in
|
| Product Width |
1.81 in
|
| Product Weight |
0.3375 lb
|
| Manufacturer Warranty |
3 year
|
| Compliances |
CE Marked
|
| Certifications |
CSA Certified
|
| Product Type |
Photoelectric sensor
|
| Contact Rating |
3A at 240 Vac
|
| Enclosure material |
Fiberglass reinforced plastic
|
| Operating mode |
Thru-beam
|
| Connection |
5-pin mini connector
|
| Contact configuration |
SPDT form C relay
|
| Sensor type |
Through beam
|
| Switch type |
Photoelectric
|
| Input voltage |
12-240 Vdc, 24-240 Vac
|
| LED indicator |
Output status: green
Marginal gain: red Power on: yellow |
| Time delay |
Yes
|
| Maximum AC current |
3 A
|
| Operating temperature - max |
131 °F
|
| Operating temperature - min |
-13 °F
|
| Environmental rating |
IP67, IP69K
|
Related Products
Warranty Information
Manufacturer Warranty: 3 year
