Operation
Operation

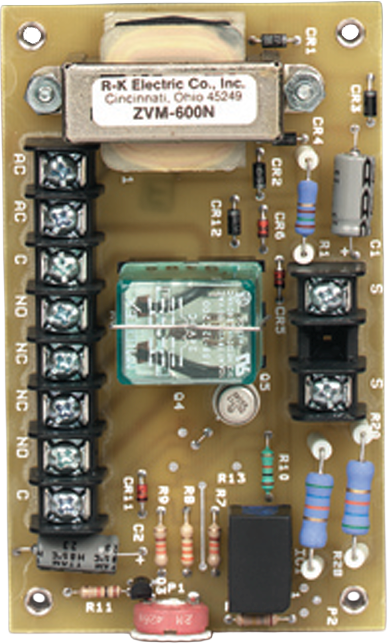

An AC input voltage of 115VAC must be provided to the ZVM continuously. While the ZVM will drop-out and pick-up based on an adjustable millivolt set point, the signal circuit will accept up to 600VAC. With no voltage on the signal terminals, the internal relay is energized, transferring the output contacts. When the voltage exceeds the set point, the relay will de-energize. When used on Zero Speed applications, a loss of input voltage will cause the relay to remain de-energized as if the motor were still running. Reverse operation is available. For DC current sensing, select a 100mVolt shunt of the correct current rating and connect the shunt in series with the load and in parallel with the ZVM’s signal terminals.
Specifications
Specifications
| Input Voltage | 15VAC ±10% |
|---|---|
| Frequency | 50/60Hz |
| Set Point Range | Adjustable |
| Adjustable | 40 to 400 millivolts |
| Differential | 1 millivolt, Approx. |
| Overvoltage | Accepts up to 600 Volts on signal terminals |
| Signal impedance | 100,000 Ohms, Minimum |
| Response Time | Pick-Up of Relay with |
| Decreasing Voltage | 0.5 Sec. Fixed |
| Power Consumption | 5VA |
| Output Contacts | 1/3 HP @ 120/240VAC 10 Amps @ 120VAC 100,000 Full Load Cycles 50,000,000 Mechanical Cycles |
| Mounting | Surface |
| Termination | Screw Terminals |
| Packaging | Open Printed Circuit Board |
| Weight | 11 oz. Approx. |
| Operating | 0°C to 65°C |
| Storage | -30°C to 85°C |
