Specifications
Specifications

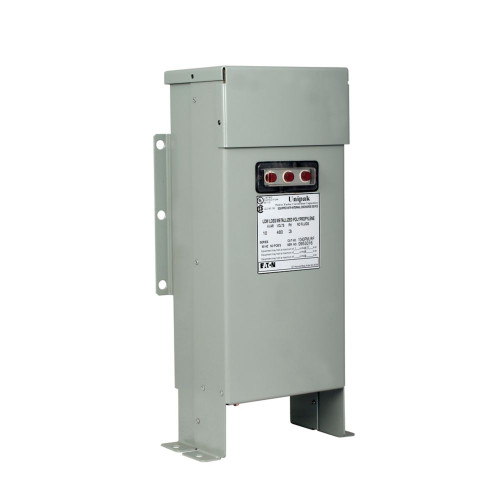

| Product Name | Eaton LV Unipak capacitor bank |
|---|---|
| Catalog Number | 3543PMURF |
| UPC | 782116058754 |
| Product Length/Depth | 11.054 in |
| Product Height | 25.3 in |
| Product Width | 10.1 in |
| Product Weight | 44.85 lb |
| Manufacturer Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Certifications | UL Listed CSA Certified |
| Catalog Notes | Multiply the 240V kVAR rating by 0.75 to calculate the kVAR value at 208V. |
| Product Type | Capacitor bank |
| Type | UNIPAK |
| Amperage Rating | 42A |
| Fuse type | Three slottedblade type fuses with 200,000 ampere interrupting capacity, Fuses mounted on stand-off bushings or fuse blocks, solderless connectors for easy hookup of incoming line conductors. |
| Phase | Three-phase |
| Product Category | Low Voltage Fixed Capacitor Banks |
| Voltage rating | 480 V |
| Enclosure | NEMA 1, NEMA 3R |
| Enclosure material | 14 gauge steel finished with durable powder coat finish |
| Frame size | B1 |
| Indicators | Red, neon blown-fuse indicating lights are protected by transparent weatherproof guard |
| Protection | Three fuses, three lights |
| Rating | 35 kVAR |
Documents for
NEMA Rating for
+
| Environments | Type 1 | Type 12 | Type 3R | Type 4 | Type 4X |
|---|---|---|---|---|---|
| Indoor use only | |||||
| Indoor and outdoor use | |||||
| Falling liquids and light splashes | |||||
| Nonhazardous dust, lint, and fibers | |||||
| Washdowns and splashing water | |||||
| Oil and coolant seepage | |||||
| Corrosive agents | |||||
|
Hazardous locations (Class I, Division 1 and 2) |
Related Products
Warranty Information
Manufacturer Warranty: Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
