Specifications
Specifications
| Product Name |

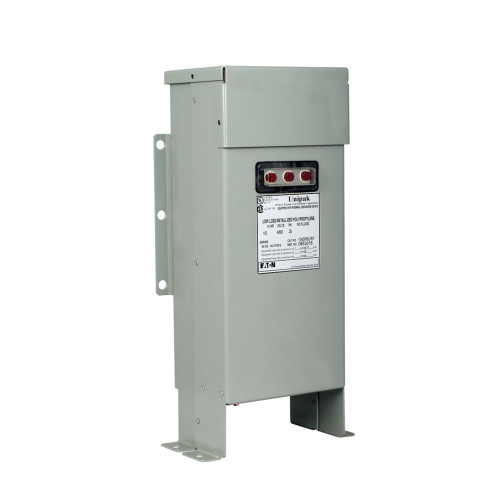

Eaton LV Unipak capacitor bank
|
|---|---|
| Catalog Number |
2543PMURF
|
| UPC |
782116058716
|
| Product Length/Depth |
5.954 in
|
| Product Height |
22.3 in
|
| Product Width |
8.5 in
|
| Product Weight |
32 lb
|
| Manufacturer Warranty |
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
Multiply the 240V kVAR rating by 0.75 to calculate the kVAR value at 208V.
|
| Product Type |
Capacitor bank
|
| Type |
UNIPAK
|
| Amperage Rating |
30A
|
| Fuse type |
Three slottedblade type fuses with 200,000 ampere interrupting capacity, Fuses mounted on stand-off bushings or fuse blocks, solderless connectors for easy hookup of incoming line conductors.
|
| Phase |
Three-phase
|
| Product Category |
Low Voltage Fixed Capacitor Banks
|
| Voltage rating |
480 V
|
| Enclosure |
NEMA 1, NEMA 3R
|
| Enclosure material |
14 gauge steel finished with durable powder coat finish
|
| Frame size |
A2
|
| Indicators |
Red, neon blown-fuse indicating lights are protected by transparent weatherproof guard
|
| Protection |
Three fuses, three lights
|
| Rating |
25 kVAR
|
NEMA Rating for
+
| Environments | Type 1 | Type 12 | Type 3R | Type 4 | Type 4X |
|---|---|---|---|---|---|
| Indoor use only | |||||
| Indoor and outdoor use | |||||
| Falling liquids and light splashes | |||||
| Nonhazardous dust, lint, and fibers | |||||
| Washdowns and splashing water | |||||
| Oil and coolant seepage | |||||
| Corrosive agents | |||||
|
Hazardous locations (Class I, Division 1 and 2) |
