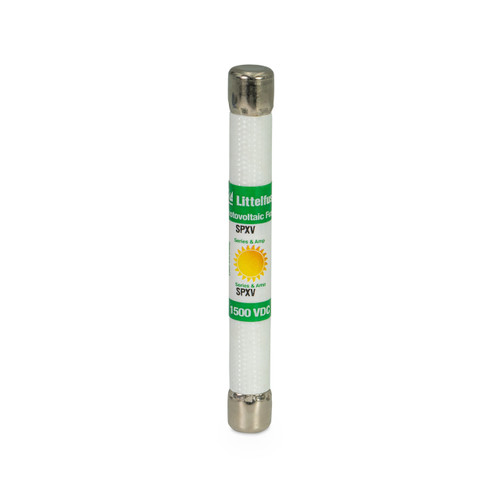

The Littelfuse SPXV solar string fuse has been specifically designed for the protection of photovoltaic (PV) systems. It is available in multiple ampere ratings to match various requirements in a range of applications.
Features & Benefits
Features & Benefits
- Offers higher amperage protection in less space for increased design flexibility
- Full range, fast-acting fuse helps eliminate common low-overload faults
- Up to 50,000 A interrupting rating
Applications
Applications
- Inverters
- Combiner boxes
Specifications
Specifications
| Current Rating (Continuous) in Amps | 2.25 |
|---|---|
| Interrupting Rating | 50 kA |
| Opening | Fast-Acting (F) |
| Voltage Rating (V) | 1500 |
| Amp Code (Part Number) | 2.25 |
| Body Material | Melamine |
| Family Style | Solar Protection |
| IEC Standard | 60269-6 |
| Indicating | No |
| Interrupt Voltage Type ACDC - 1 | DC |
| Interrupt Voltage (V) -1 | 1500 |
| Mounting Method | Fuse Block |
