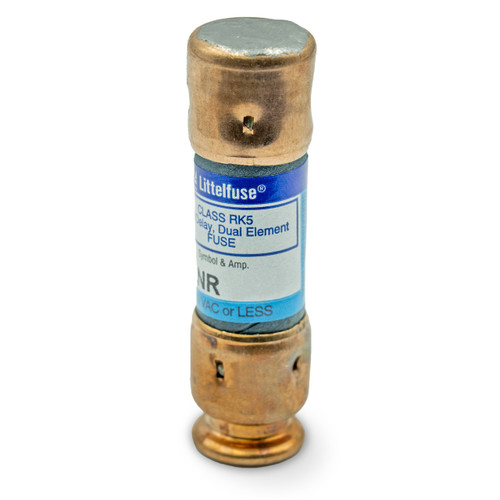

The FLNR Series sets the standard for general purpose fuses. The dual-element design provides advanced short-circuit and overload protection. These time-delay fuses are also available in an indicating version, see FLNR_ID series.
Features & Benefits
| FEATURES | BENEFITS |
| Dual-element design | Provides advanced short-circuit and overload protection |
| Current limiting | Restricts fault current to provide a high degree of circuit protection |
Applications
- Service entrance switches
- Transformers
- Switchboard mains and feeders
- Motor control central mains and motor branch circuits
- All general purpose circuits
Specifications
| Current Rating (Continuous) in Amps | 1.5 |
|---|---|
| Interrupting Rating | 300 kA AC; 20 kA DC |
| Opening | Slo-Blo/Time Lag (T)/Time Delay |
| Maximum AC Voltage (V) | 250 |
| Voltage Rating (V) | 125 |
| Size | Industrial Cartridge |
| Amp Fraction | 1 1/2 |
| Family Style | Dual Element Fuse |
| Fuse Class | Class RK5 |
| Indicating | No |
| Interrupt Amperage | 200000 |
| Interrupt Amperage (A) - 2 | 300000 |
| Interupt Amperage 3 | 20000 |
| Interrupt Voltage Type ACDC - 1 | AC |
| Interrupt Voltage Type ACDC - 2 | AC |
| Interrupt Voltage Type ACDC - 3 | DC |
| Interrupt Voltage | 250 |
| Interrupt Voltage (V) - 2 | 250 |
| Interrupt Voltage - 3 | 125 |
| Mounting Method | Fuse Block / Clip / Holder |
| PG Holder | LFR25030 Series |
