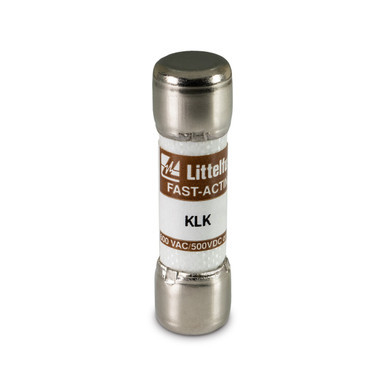

The KLK series fast-acting fuses are designed specifically for the protection of control circuits, street lighting, HID lighting, computers, and other applications without high in-rush currents. These midget fuses also have high-interrupting and currentlimiting capability. They are intended to supplement the primary branch-circuit fuse or breaker to provide backup overcurrent protection. The KLK fuses are non-indicating and may be used with an indicating fuse block to identify a blown fuse.
Features & Benefits
Features & Benefits
| FEATURES | BENEFITS |
| 10x38 mm size | Common dimensions used in a variety of applications |
| Dual-element design | Provides fast, reliable short-circuit response within the interrupting rating |
| POWR-GARD® technology | Ensures quality backup overcurrent protection |
Applications
Applications
- Control circuits
- Street and HID lighting
- Computers
Specifications
Specifications
| Current Rating (Continuous) in Amps | 5 |
|---|---|
| Interrupting Rating | 100 kA @ 600 Vac |
| Opening | Fast-Acting (F) |
| Maximum AC Voltage (V) | 600 |
| Maximum DC Voltage (V) | 500 |
| Size | Midget/5AG |
| Family Style | Midget Fuse |
| Fuse Class | Midget/Class CC |
| Indicating | No |
| Interrupt Amperage | 100000 |
| Interrupt Amperage (A) - 2 | 50000 |
| Interrupt Voltage Type ACDC - 1 | AC |
| Interrupt Voltage Type ACDC - 2 | DC |
| Interrupt Voltage | 600 |
| Interrupt Voltage (V) -2 | 500 |
| Mounting Method | Fuse Block / Clip / Holder |
| PG Holder | L60030M Series |
