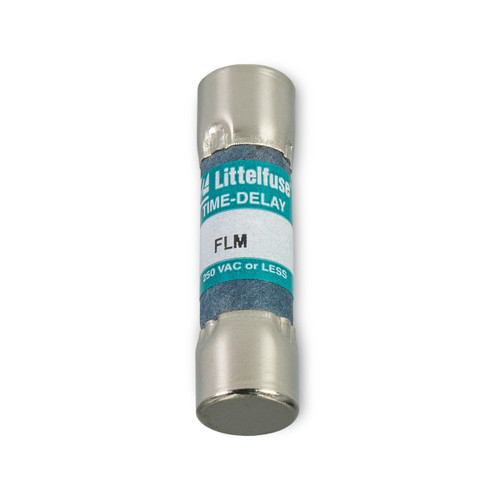

The FLM series 250V fuses are designed to protect control circuit transformers, solenoids, and other circuits with high in-rush currents. They are also excellent for supplemental protection of small motors. The time-delay design can carry an overload several times the normal load for a short period of time without blowing. The FLM fuses are non-indicating and may be used with an indicating fuse block to identify a blown fuse.
Features & Benefits
Features & Benefits
| FEATURES | BENEFITS |
| 10x38 mm size | Common dimensions used in a variety of applications |
| Time-delay | Allows for temporary current surge for a short period of time without blowing |
| Paper body | Cost effective materials provide a lower cost alternative for supplemental circuit protection |
| POWR-GARD® technology | Ensures quality backup overcurrent protection |
Applications
Applications
- Control circuit transformers
- Solenoids
- Circuits with high in-rush currents
- Small motors
Specifications
Specifications
| Current Rating (Continuous) in Amps | 3.2 |
|---|---|
| Interrupting Rating | 10 kA @ 250V AC |
| Opening | Slo-Blo/Time Lag (T)/Time Delay |
| Maximum AC Voltage (V) | 250 |
| Voltage Rating (V) | 125 |
| Size | Midget/5AG |
| Amp Fraction | 3 2/10 |
| Family Style | Midget Fuse |
| Fuse Class | Midget/Class CC |
| Indicating | No |
| Interrupt Amperage | 10000 |
| Interrupting Amperage (A) - 2 | 10000 |
| Interrupt Voltage Type ACDC - 1 | AC |
| Interrupt Voltage Type ACDC - 2 | DC |
| Interrupt Voltage | 250 |
| Interrupt Voltage (V) - 2 | 125 |
| Mounting Method | Fuse Block / Clip / Holder |
| PG Holder | L60030M Series |
