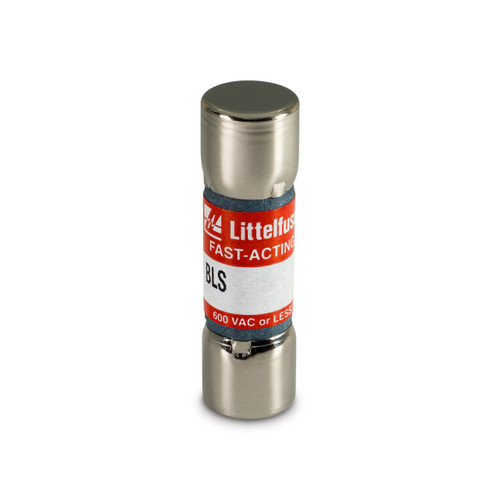

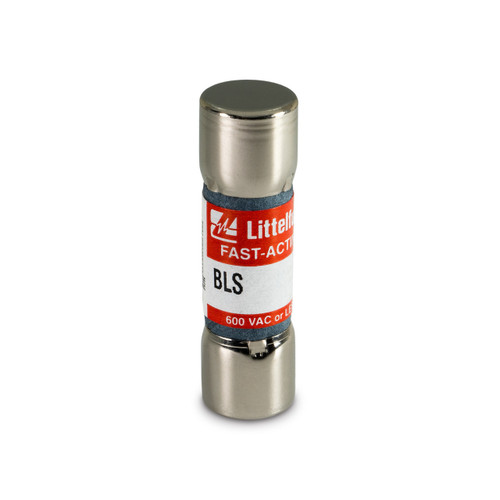

The BLS series fast-acting fuses are 1 3⁄8" long in comparison to other midget fuses, which are 1½" long. They provide space-saving, low-cost protection for street lighting, metering, control and electronic circuits. These fuses open circuits quickly when surges are detected, providing exceptional security for equipment requiring fast overload protection.
Features & Benefits
Features & Benefits
| FEATURES | BENEFITS |
| Special 10x38 mm size | Suitable for applications with space constraints |
| Fast-acting | Provides fast, reliable overcurrent response within the interrupting rating |
| POWR-GARD® technology | Ensures reliable overcurrent protection |
Applications
Applications
- Street lighting
- Metering
- Control and electronic currents
Specifications
Specifications
| Current Rating (Continuous) in Amps | 7 |
|---|---|
| Interrupting Rating | 10 kA @ 250V AC |
| Opening | Fast-Acting (F) |
| Maximum AC Voltage (V) | 250 |
| Size | Midget/5AG |
| Family Style | Midget Fuse |
| Fuse Class | Midget/Class CC |
| Indicating | No |
| Interrupt Amperage | 10000 |
| Interrupt Voltage Type ACDC - 1 | AC |
| Interrupt Voltage (V) | 250 |
| Mounting Method | Fuse Block / Clip / Holder |
| PG Holder | L60030M Series |
