Specifications
Specifications
| Primary brand | NOARK |
|---|---|
| Main function |

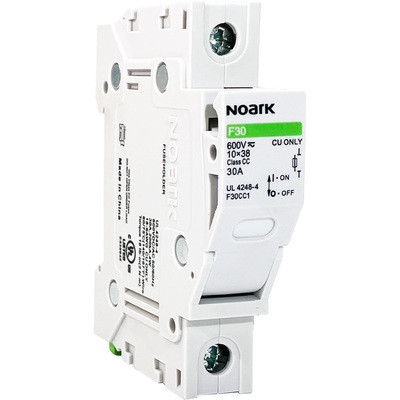

Fuse holder
|
| Product series / family name |
Electrical protection > Fuse protections > Fuse-holders
|
| Sub-range name |
F30 series
|
| Functions |
Fuse holder
|
| Design |
blown-fuse light indicator
UL class CC - 10x38mm |
| Poles |
4-poles (4P)
|
|
Rated current
|
30A max.
|
|
Rated Voltage (DC)
|
600Vdc |
|
Rated voltage (AC)
|
600Vac |
|
Cross-section
|
for #18AWG...#6AWG / 0.75mm2...16mm2 Copper wire
|
|
Short circuit breaking rating
|
200kA |
|
Mounting mode
|
DIN rail
|
|
Degree of protection
|
IP20 |
| Dimensions |
H80mm x W79mm x D71.2mm
H3.15" x W3.11" x D2.8" |
|
Net Width (mm)
|
35 mm
|
|
Ambient air temperature for operation
|
-22°F...+185°F / -30°C...+85 °C
|
|
Climatic resistance
|
Altitude does not exceed 6561ft (2000m)
|
|
Order code / Manufacturer SKU
|
F30CC4L 1002568 |
|
Manufacturer product status
|
Commercialized |
|
Equivalent to
|
1002568 |
|
Compliant with standard(s)
|
UL 4248-4
|
|
Tightening torque
|
18lb.in / 2 N.m
|
|
Degree of pollution
|
III |
