SCE-N86C7824

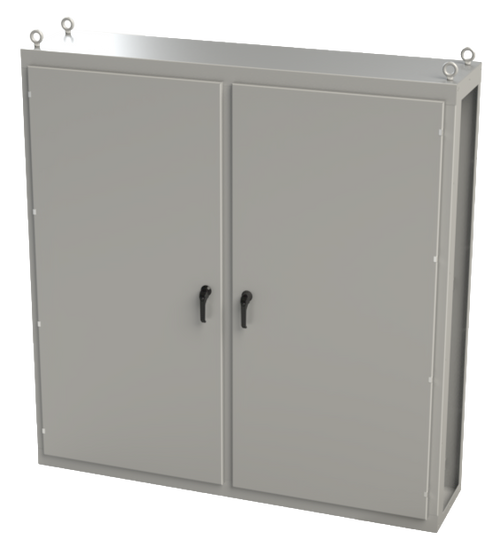

SCE-N86C7824 Saginaw Control & Engineering 86 x 77.75 x 24 2DR Enclosure

• .104 in carbon steel.
• Seams continuously welded and ground smooth.
• Flange trough collar around all sides of door opening.
• Body stiffeners in large enclosures for extra rigidity.
• Heavy duty lifting eyes anchor into reinforced top.
• Black zinc die cast padlocking handles on doors.
• 3-point latching mechanism.
• End of latch rods have ramp shoes for easier door closing.
• Panel supports.
• Pour-in-place oil & water resistant gasket.
• Optional panels mount to collar studs.
• Ground stud on door and body.
• Provisions for light kit.
• Holes plug provided to seal holes in bottom of enclosure.
• Enclosures include provisions for system expansion.

SCE-N86C7824 Saginaw Control & Engineering 86 x 77.75 x 24 2DR Enclosure

Can be bolted together in any desired multiple door arrangement for maximum versatility. Designed to house a variety of electrical and electronic controls and instruments. Provides protection from dust, dirt, water and oil. The enclosures are extra deep for applications requiring more interior space. For outdoor application a drip shield and drain vent is recommended.

SCE-N86C7824 Saginaw Control & Engineering 86 x 77.75 x 24 2DR Enclosure

SCE-09 Gray powder coated inside and out. Optional subpanels powder coated white or galvanized.

SCE-N86C7824 Saginaw Control & Engineering 86 x 77.75 x 24 2DR Enclosure

• NEMA Type 3R, 4, 12 and Type 13
• UL Listed Type 3R, 4 and 12
• CSA Type 3R, 4 and 12
• IEC 60529
• IP 66
