- SKU:
- SCE-N80RX7818
- Weight:
- 756.00 LBS
- Dimensions:
- 80in x 77.75in x 18in

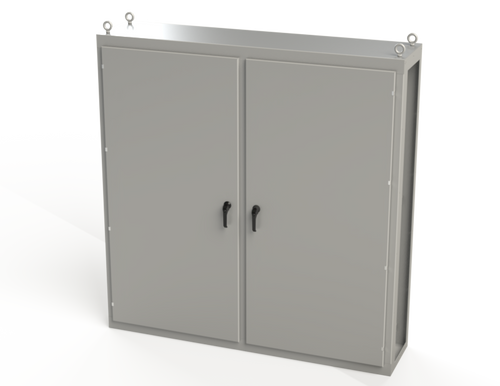

Representative image shown
SCE-N80RX7818
2DR Enclosure Right Bay - w/ Disc. - Left side Open
$3,228.86
Factory New
Saginaw Control & Engineering
Representative image shown
Product Details
Complete Your Build
verified
Verified fit
These products are compatible with the
Lighting
Ventilation
Shelving
Pockets
Plates
Build My Enclosure
Total price: $0
Construction
Construction
SCE-N80RX7818 Saginaw Control & Engineering 80 x 77.75 x 18 2DR Enclosure
- Provisions for flange mount disconnect.
- .104 in carbon steel.
- Seams continuously welded and ground smooth.
- Flange trough collar around all sides of door opening.
- Body stiffeners in large enclosures for extra rigidity.
- Heavy duty lifting eyes anchor into reinforced top.
- Concealed hinges.
- Black zinc die cast coinproof/padlocking handle on door.
- 3-point latching mechanism.
- End of latch rods have ramp shoes for easier door closing.
- Panel supports.
- Pour-in-place oil & water resistant gasket.
- Optional panels mount to collar studs.
- Ground stud on door and body.
- Provisions for light kit.
- Holes plug provided to seal holes in bottom of enclosure.
- Enclosures include provisions for system expansion.
Application
Application
SCE-N80RX7818 Saginaw Control & Engineering 80 x 77.75 x 18 2DR Enclosure
Can be bolted together in any desired multiple door arrangement for maximum versatility. Designed to house a variety of electrical and electronic controls and instruments, and most standard type disconnects. Provides protection from dust, dirt, water and oil. Provisions for 30 to 200 amp Cable Operated Disconnect switch (or circuit breaker). The enclosures are extra deep for applications requiring more interior space. For outdoor application a drip shield and drain vent is recommended.
Finish
Finish
SCE-N80RX7818 Saginaw Control & Engineering 80 x 77.75 x 18 2DR Enclosure
SCE-09 Gray powder coated inside and out. Optional subpanels powder coated white or galvanized.
Industry Standards
Industry Standards
SCE-N80RX7818 Saginaw Control & Engineering 80 x 77.75 x 18 2DR Enclosure
- NEMA Type 3R, 4, 12 and Type 13
- UL Listed Type 3R, 4 and 12
- CSA Type 3R, 4 and 12
- IEC 60529
- IP 66
NEMA Rating for
+
| Environments | Type 1 | Type 12 | Type 3R | Type 4 | Type 4X |
|---|---|---|---|---|---|
| Indoor use only | |||||
| Indoor and outdoor use | |||||
| Falling liquids and light splashes | |||||
| Nonhazardous dust, lint, and fibers | |||||
| Washdowns and splashing water | |||||
| Oil and coolant seepage | |||||
| Corrosive agents | |||||
|
Hazardous locations (Class I, Division 1 and 2) |
