- SKU:
- SCE-L9N368LP
- Weight:
- 29.70 LBS
- Width:
- 36.00 in
- Height:
- 9.00 in
- Depth:
- 8.00 in
- Dimensions:
- 9in x 36in x 8in

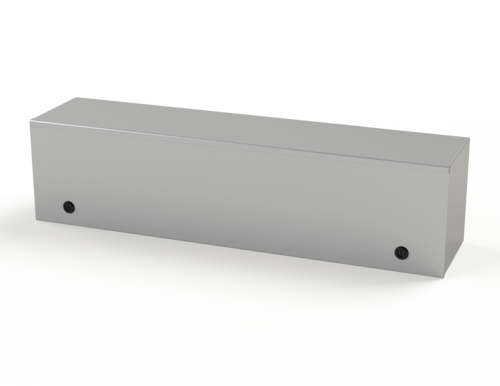

Representative image shown
SCE-L9N368LP
Nema-1 Enclosure
$195.38
Factory New
Saginaw Control & Engineering
Representative image shown
Versions (5)
Product Details
Complete Your Build
verified
Verified fit
These products are compatible with the
Inner Panels
Hardware
Build My Enclosure
Total price: $0
Construction
Construction
- 0.048 and 0.060 carbon steel depending on its size.
- Spot weld construction
- 10-32 Standoffs provided for mounting optional sub-panels
- Removable Cover
- Black quarter turn latches
- Latches are opened or closed with a screwdriver
- Ground stud on door and body
- Mounting holes in back of enclosure
- Sub-panel mounting hardware included
Application
Application
Designed to house electrical controls, instruments and components in areas that do not require oil, water and dust tight protection.
Finish
Finish
ANSI-61 gray powder coated inside and out.
Optional sub-panels powder coated white.
Industry Standards
Industry Standards
- NEMA Type 1
- UL Listed Type 1
- CSA Type 1
- IEC 60529
- IP 30
NEMA Rating for
+
| Environments | Type 1 | Type 12 | Type 3R | Type 4 | Type 4X |
|---|---|---|---|---|---|
| Indoor use only | |||||
| Indoor and outdoor use | |||||
| Falling liquids and light splashes | |||||
| Nonhazardous dust, lint, and fibers | |||||
| Washdowns and splashing water | |||||
| Oil and coolant seepage | |||||
| Corrosive agents | |||||
|
Hazardous locations (Class I, Division 1 and 2) |
