- SKU:
- SCE-AC5100B230V
- Weight:
- 108.90 LBS
- Width:
- 15.55 in
- Height:
- 45.28 in
- Depth:
- 10.63 in
- Cooling Capacity:
- 5100 BTU/Hr.
- Heating Capacity:
- 1000 Watt
- Voltage:
- 230V

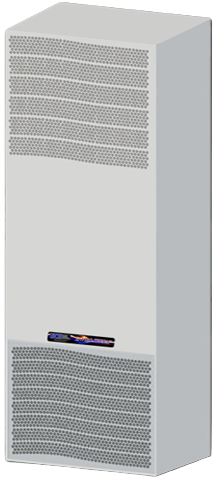

Representative image shown
SCE-AC5100B230V
Air Conditioner (5100 BTU/Hr., 230 Volt)
$3,004.72
Factory New
Saginaw Control & Engineering
Saginaw, Air Conditioner, 5100 BTU/Hr., 230 Volt, Closed Loop Cooling System
Representative image shown
Versions (3)
Product Details
Construction
Construction
- Closed Loop Cooling System
- Hermitically sealed Rotary piston compressor
- Internal Components are Corrosion Resistant
- Specially designed Active Condensate System using PTC heater element
- Coils are designed as filterless units, fin spacing and hydrophobic Nano coating to help reduce chance of clogging
- Washable, Reusable 8 layer aluminum mesh filters included
- Captive screw fastened filter cover
- Integrated compressor heater for Low Ambient temperatures and up to 2000 watts of Enclosure Heat
- R513a Refrigerant - Chlorine-free and harmless to the environment
- Easy Mounting Flange hangers for installation included
- Digital Touchpad Programmable Controller, viewable and accessible from inside enclosure
- Controller Preset 95°F to cool - adjustable 68°F to 122°F
- Preset at 41°F to heat - adjustable -4°F to 122°F
- Temperature differential hysteresis 5.4°F
- High temp alarm Preset 131°F
- High performance ball bearing fans
- Door activated switch wiring provisions provided for easy installation
- Cage clamp terminal connector
- Oil and water resistant gaskets installed
- Built in ModBus Communication RS485 serial
Application
Application
Enviro-Therm® Air Conditioners are designed with an internal closed loop system to provide protection from dust, oil and water. For indoor and outdoor application. Rugged, energy efficient,and reliable cooling system.
Finish
Finish
Powder coated steel Cover RAL 7035 River Texture over Aluzinc coated steel
Standards
Standards
- NEMA Type 3R, 4 & 12
- UL Recognized Type 3R, 4 & 12
- IEC 60529
- IP 56
NEMA Rating for
+
| Environments | Type 1 | Type 12 | Type 3R | Type 4 | Type 4X |
|---|---|---|---|---|---|
| Indoor use only | |||||
| Indoor and outdoor use | |||||
| Falling liquids and light splashes | |||||
| Nonhazardous dust, lint, and fibers | |||||
| Washdowns and splashing water | |||||
| Oil and coolant seepage | |||||
| Corrosive agents | |||||
|
Hazardous locations (Class I, Division 1 and 2) |
