- SKU:
- SCE-9KJ0804SSST
- Weight:
- 9.00 LBS
- Width:
- 7.50 in
- Height:
- 8.50 in
- Depth:
- 4.00 in
- Dimensions:
- 8.5in x 7.5in x 4in
Representative image shown
SCE-9KJ0804SSST

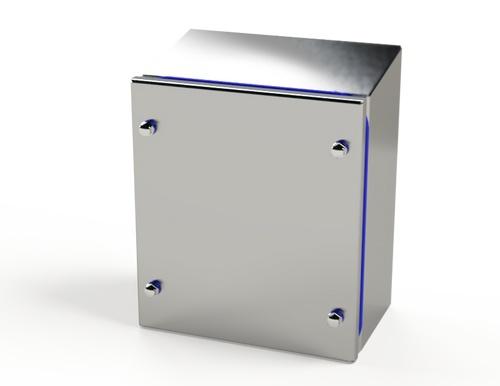

S.S. Sanitary Sloping Top Junction Enclosure
$655.51
Factory New
Saginaw Control & Engineering
Representative image shown
Product Details
Complete Your Build
verified
Verified fit
These products are compatible with the
Inner Panels
Build My Enclosure
Total price: $0
Construction
Construction
SCE-9KJ0804SSST Saginaw Control & Engineering 8.5 x 7.5 x 4 S.S. Sanitary Sloping Top Junction Enclosure
- 0.063 In. stainless steel Type 304
- Seams continuously welded and ground smooth
- 10 degree sloped top
- Sanitary fasteners with FDA - Grade silicone gasket
- Pour in place oil & water resistant gasket
- FDA - Grade silicone gasket
- Provision for mounting optional panels
- Ground stud on door & body
- Solid back with no mounting holes makes it easy to add weld mounting stand-off
- DIN 40050-9 IP69K
- ANSI 3-A 00-01 Sanitary Standard for General Requirements
- NSF 169 Special Purpose Food Equipment and Devices
Application
Application
SCE-9KJ0804SSST Saginaw Control & Engineering 8.5 x 7.5 x 4 S.S. Sanitary Sloping Top Junction Enclosure
Designed to withstand high pressure and high temperature washdown procedures with direct and indirect food contact applications within the Food & Beverage industry. Screw Cover enclosures provide maximal back panel space, and dual-gasket design that ensures its performance in extreme applications. Dual-gasket includes an inner pour-in-place oil & water-resistant gasket as well as an easily replaceable outer gasket that is a FDA-grade silicone that helps resist growth and chemical absorption.
Finish
Finish
SCE-9KJ0804SSST Saginaw Control & Engineering 8.5 x 7.5 x 4 S.S. Sanitary Sloping Top Junction Enclosure
# 4 Brushed finish 25-35 RA suitable for medical and food industry.
Industry Standards
Industry Standards
SCE-9KJ0804SSST Saginaw Control & Engineering 8.5 x 7.5 x 4 S.S. Sanitary Sloping Top Junction Enclosure
- NEMA Type 3R, 4, 4X, 12 and Type 13
- UL Listed Type 3R, 4, 4X and 12
- CSA Type 4, 4X and 12
- IEC 60529
- IP 69
NEMA Rating for
+
| Environments | Type 1 | Type 12 | Type 3R | Type 4 | Type 4X |
|---|---|---|---|---|---|
| Indoor use only | |||||
| Indoor and outdoor use | |||||
| Falling liquids and light splashes | |||||
| Nonhazardous dust, lint, and fibers | |||||
| Washdowns and splashing water | |||||
| Oil and coolant seepage | |||||
| Corrosive agents | |||||
|
Hazardous locations (Class I, Division 1 and 2) |
