SCE-90XM7818SS6

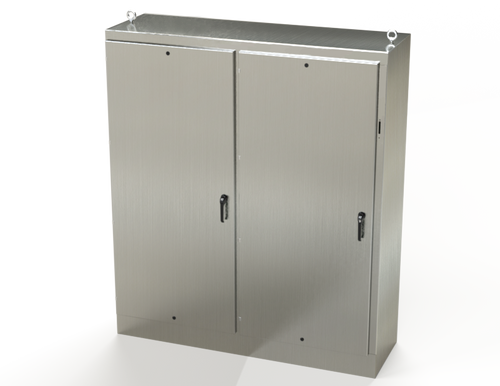

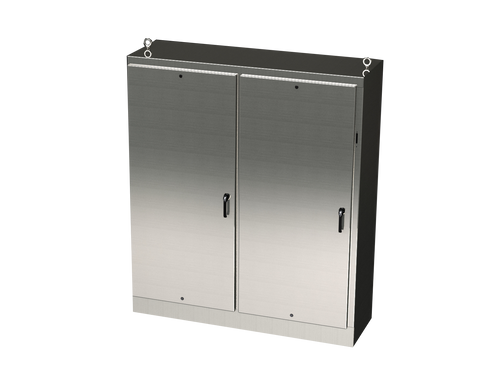

SCE-90XM7818SS6 Saginaw control & Engineering 90 x 77.75 x 18 S.S. 2DR XM Enclosure

• 0.104 In. stainless steel Type 316/316L.
• Seams continuously welded and ground smooth.
• Flange trough collar around all sides of door opening.
• Body stiffeners in large enclosures for extra rigidity.
• Heavy duty lifting eyes anchor into reinforced top.
• Removable centerposts permit easy panel installation.
• Stainless steel concealed hinges.
• Black zinc die cast coinproof/padlocking handle on main door with black zinc die cast padlocking handle on slave doors.
• 3-point latching mechanism.
• Ends of latch rods have ramp shoes for easier door closing.
• Panel supports.
• Large removable print pockets.
• Pour in place oil & water resistant gasket
• Removable panels mount on collar studs.
• Master door is far right-hand door on all enclosures.
• Defeater on master door requires a screwdriver to open.
• Mechanical interlock activated by master door prevents slave doors from being opened first. Doors can be closed in any order.
• Ground stud on door.
• Provisions for light kit.

SCE-90XM7818SS6 Saginaw Control & Engineering 90 x 77.75 x 18 S.S. 2DR XM Enclosure

Designed to house electrical equipment and provide protection from dirt, dust, oil and water and to house most standard type disconnects. For outdoor application a drip shield and drain vent is recommended.

SCE-90XM7818SS6 Saginaw Control & Engineering 90 x 77.75 x 18 S.S. 2DR XM Enclosure

SCE-90XM7818SS6 Saginaw Control & Engineering 90 x 77.75 x 18 S.S. 2DR XM Enclosure

• NEMA Type 3R, 4, 4X, 12 and Type 13
• UL Listed Type 3R, 4, 4X and 12
• CSA Type 4, 4X and 12
• IEC 60529
• IP 66
