NEMA Rating
Construction

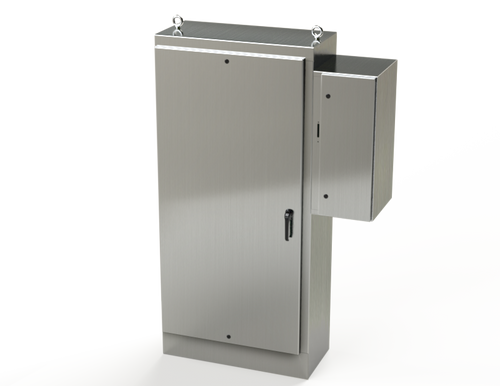

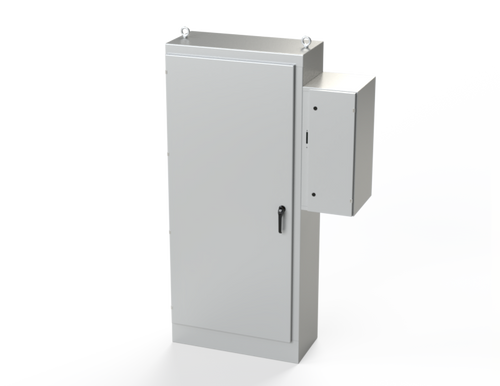

SCE-90XD4018SS6 Saginaw Control & Engineering 90 x 39.5 x 18 S.S. 1DR XD Enclosure
- 0.104 In. stainless steel Type 304
- Seams continously welded and ground smooth.
- Flange trough collar around all sides of door opening.
- Body stiffeners for extra rigidity.
- Heavy duty lifting eyes anchor into reinforced top.
- Concealed hinges.
- Black zinc die cast padlocking handles.
- 3-point latching mechanism.
- Large removable print pockets.
- Pour in place oil & water resistant gasket
- Removable panels are mounted on collar studs.
- Defeater on master door requires a screwdriver to open.
- Mechanical interlock activated by the External Disconnect prevents main door of the enclosure from being closed unless the EXD enclosure is first closed.
- Ground stud on door & body.
- Provisions for light kit.
- Provision for 200 amp disconnect or less (Ref. D1 Cutout) - for use with Allen Bradley, Square D and Eaton (FHS) models only
Application
SCE-90XD4018SS6 Saginaw Control & Engineering 90 x 39.5 x 18 S.S. 1DR XD Enclosure
Designed to house the main power supply in external enclosure on the right side of main enclosure, keeping the live side of the power supply separate from the primary electrical equipment. Provides protection from dirt, dust, oil and water and can house most standard type disconnects. For outdoor application a drip shield and drain vent is recommended.
Finish
SCE-90XD4018SS6 Saginaw Control & Engineering 90 x 39.5 x 18 S.S. 1DR XD Enclosure
#4 brushed finish on all exterior surfaces. Sub-panels are powder coated white.
Industry Standards
SCE-90XD4018SS6 Saginaw Control & Engineering 90 x 39.5 x 18 S.S. 1DR XD Enclosure
- NEMA Type 3R, 4, 4X, 12 and Type 13
- UL Listed Type 3R, 4, 4X and 12
- CSA Type 4, 4X and 12
- IEC 60529
- IP 66
