- SKU:
- SCE-84XM4018SS6
- Weight:
- 512.00 LBS
- Width:
- 39.50 in
- Height:
- 84.00 in
- Depth:
- 18.00 in
- Dimensions:
- 84in x 39.5in x 18in

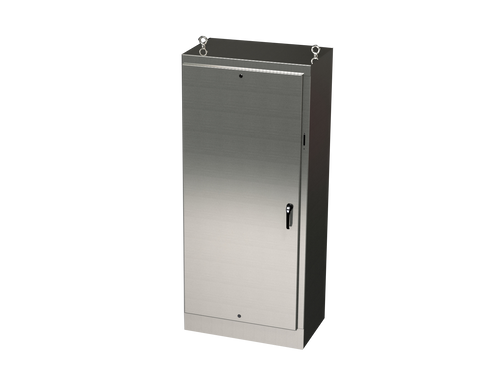

Representative image shown
SCE-84XM4018SS6
S.S. 1DR XM Enclosure
$8,845.67
Factory New
Saginaw Control & Engineering
Representative image shown
Versions (7)
Product Details
Complete Your Build
verified
Verified fit
These products are compatible with the
Lighting
Venitlation
Shelving
Inner Panels
Pockets
Plates
Wire Covers
Build My Enclosure
Total price: $0
Construction
Construction
- 0.104 In. stainless steel Type 316/316L.
- Seams continuously welded and ground smooth.
- Flange trough collar around all sides of door opening.
- Body stiffeners in large enclosures for extra rigidity.
- Heavy duty lifting eyes anchor into reinforced top.
- Stainless steel concealed hinges.
- Black zinc die cast coinproof/padlocking handle.
- 3-point latching mechanism.
- Ends of latch rods have ramp shoes for easier door closing.
- Panel supports.
- Large removable print pockets.
- Large removable print pockets.
- Removable panels mount on collar studs.
- Defeater on master door requires a screwdriver to open.
- Ground stud on door.
- Provisions for light kit.
Application
Application
Designed to house electrical equipment and provide protection from dirt, dust, oil and water and to house most standard type disconnects. For outdoor application a drip shield and drain vent is recommended.
Finish
Finish
#4 brushed finish on all exterior surfaces. Sub-panels are powder coated white.
Industry Standards
Industry Standards
- NEMA Type 3R, 4, 4X, 12 and Type 13
- UL Listed Type 3R, 4, 4X and 12
- CSA Type 4, 4X and 12
- IEC 60529
- IP 66
NEMA Rating for
+
| Environments | Type 1 | Type 12 | Type 3R | Type 4 | Type 4X |
|---|---|---|---|---|---|
| Indoor use only | |||||
| Indoor and outdoor use | |||||
| Falling liquids and light splashes | |||||
| Nonhazardous dust, lint, and fibers | |||||
| Washdowns and splashing water | |||||
| Oil and coolant seepage | |||||
| Corrosive agents | |||||
|
Hazardous locations (Class I, Division 1 and 2) |
