Construction

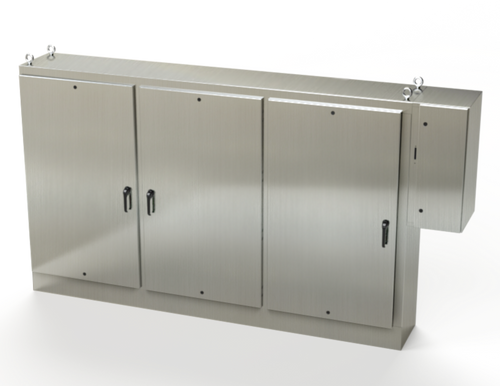

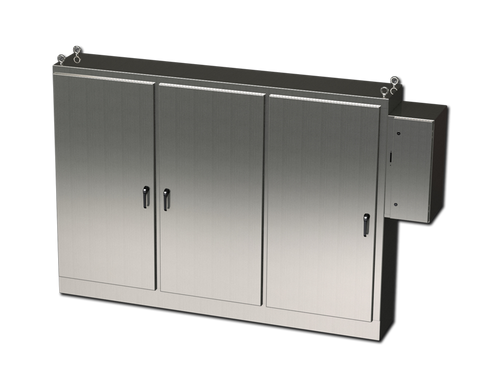

SCE-72XD3EW18SS6 Saginaw Control & Engineering 72 x 117.5 x 18 S.S. 3DR XD Enclosure
- 0.104 In. stainless steel Type SS 304 or SS6 316.
- Seams continously welded and ground smooth.
- Flange trough collar around all sides of door opening.
- Body stiffeners for extra rigidity.
- Heavy duty lifting eyes anchor into reinforced top.
- Removable center post to permit easy sub-panel installation.
- Concealed hinges.
- Black zinc die cast padlocking handles.
- 3-point latching mechanism.
- Large removable print pockets.
- Pour in place oil & water resistant gasket
- Removable panels are mounted on collar studs.
- Defeater on master door requires a screwdriver to open.
- Mechanical interlock activated by the External Disconnect prevents main door of the enclosure from being closed unless the EXD enclosure is first closed.
- Mechanical interlock activated by master door prevents slave doors from being opened first. Door can be closed in any order.
- Ground stud on door & body.
- Provisions for light kit.
- Provision for 200 amp disconnect or less (Ref. D1 Cutout) - for use with Allen Bradley, Square D and Eaton (FHS) models only
Application
SCE-72XD3EW18SS6 Saginaw Control & Engineering 72 x 117.5 x 18 S.S. 3DR XD Enclosure
Designed to house the main power supply in external enclosure on the right side of main enclosure, keeping the live side of the power supply separate from the primary electrical equipment. Provides protection from dirt, dust, oil and water and can house most standard type disconnects. For outdoor application a drip shield and drain vent is recommended.
Finish
SCE-72XD3EW18SS6 Saginaw Control & Engineering 72 x 117.5 x 18 S.S. 3DR XD Enclosure
#4 brushed finish on all exterior surfaces. Sub-panels are powder coated white.
Industry Standards
SCE-72XD3EW18SS6 Saginaw Control & Engineering 72 x 117.5 x 18 S.S. 3DR XD Enclosure
- NEMA Type 3R, 4, 4X, 12 and Type 13
- UL Listed Type 3R, 4, 4X and 12
- CSA Type 4, 4X and 12
- IEC 60529
- IP 66
