- SKU:
- SCE-60XEL6112SS6ST
- Weight:
- 584.00 LBS
- Width:
- 61.00 in
- Height:
- 60.00 in
- Depth:
- 12.00 in
- Dimensions:
- 60in x 61in x 12in
- Material:
- Stainless Steel
- Enclosure Type:
- Floor Mounted
- Closure Type:
- 3-Point Padlocking Handle
- Door Configuration:
- 2 Door

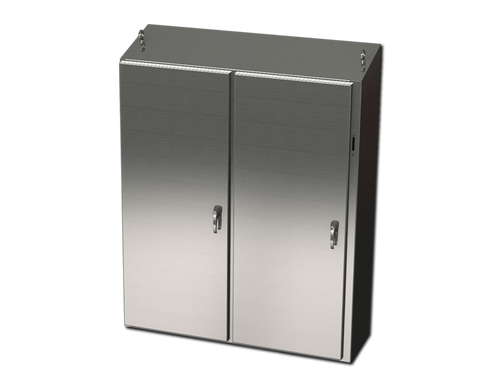

Representative image shown
SCE-60XEL6112SS6ST
Stainless Steel Sloping Top Disconnect Enclosure with a 3-Point Latching Mechanism
$18,736.36
Factory New
Saginaw Control & Engineering
Saginaw Control and Engineering, S.S. 2DR XEL Sloping Top Enclosure, 0.104 In. stainless steel Type 316/316L, 15 degree sloping top, 3-point latching mechanism, NEMA Type 3R, 4, 4X, 12 and Type 13
Representative image shown
Versions (8)
Product Details
Complete Your Build
verified
Verified fit
These products are compatible with the
Lighting
Ventilation
Shelving
Inner Panels
Pockets
Plate
Shields
Panels
Build My Enclosure
Total price: $0
Construction
Construction
- 0.104 In. stainless steel Type 304.
- Seams continuously welded and ground smooth.
- Flange trough collar around all sides of door opening.
- 15 degree sloping top.
- Removable center post.
- Heavy duty lifting eyes anchor into reinforced top.
- Body stiffeners.
- Stainless steel concealed hinges.
- Mechanical interlock.
- Stainless Steel coinproof/padlocking handle on main door with Stainless Steel padlocking handle on slave doors.
- 3-point latching mechanism.
- Removable print pocket on main door of disconnect enclosures.
- Provisions for floor stands.
- Panel supports.
- Pour in place oil & water resistant gasket
- Ground stud on door and body.
- Provisions for light kit.
- Collar studs 3/8-16 provided for mounting optional panels.
Application
Application
Designed to house electrical and electronic controls, instrumentation and components in indoor, outdoor and sanitary locations. Designed to house most standard type disconnects.
Finish
Finish
#4 brushed finish on all exterior surfaces. Optional sub-panels are powder coated white
Industry Standards
Industry Standards
- NEMA Type 3R, 4, 4X, 12 and Type 13
- UL Listed Type 3R, 4, 4X and 12
- CSA Type 4, 4X and 12
- IEC 60529
- IP 66
NEMA Rating for
+
| Environments | Type 1 | Type 12 | Type 3R | Type 4 | Type 4X |
|---|---|---|---|---|---|
| Indoor use only | |||||
| Indoor and outdoor use | |||||
| Falling liquids and light splashes | |||||
| Nonhazardous dust, lint, and fibers | |||||
| Washdowns and splashing water | |||||
| Oil and coolant seepage | |||||
| Corrosive agents | |||||
|
Hazardous locations (Class I, Division 1 and 2) |
