- SKU:
- SCE-606024LP
- Weight:
- 525.00 LBS
- Width:
- 60.00 in
- Height:
- 60.00 in
- Depth:
- 24.00 in
- Dimensions:
- 60in x 60in x 24in
- Material:
- Carbon Steel
- Enclosure Type:
- Free Standing
- Cover Type:
- Opaque
- Closure Type:
- 3-Point Latch with Handle
- Mounting Type:
- Floor Mounted

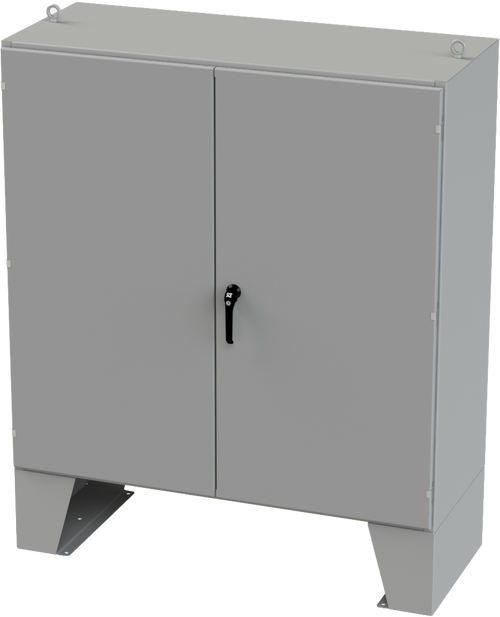

Representative image shown
SCE-606024LP
Carbon steel enclosure with 2 doors and 3-point latching handle
$2,516.79
Factory New
Saginaw Control & Engineering
Saginaw Control and Engineering, 2DR LP Enclosure, 0.104 In. carbon steel, 3-point latching mechanism, NEMA Type 3R, 12 and Type 13
Representative image shown
Trusted Accessories
Product Details
Construction
Construction
- 0.104 In. carbon steel.
- Flange trough collar around all sides of door opening.
- Seams continuously welded and ground smooth.
- Strong, rigid construction with body stiffeners.
- Gasketed overlapping doors eliminate need for center post.
- Black zinc die cast keylocking/padlocking handle.
- 3-point latching mechanism.
- Latch rods have ramp shoes for easier door closing.
- Concealed hinges.
- Removable print pocket provided on door with 3-point latch.
- 12 inch removable floor stands.
- Heavy duty lifting eyes.
- Panel supports.
- Pour in place oil & water resistant gasket
- Collar studs 3/8-16 provided for mounting optional panels.
- Ground stud on door and body.
- Hole plugs provided to seal holes in bottom of enclosure.
Application
Application
Designed to house electrical and electronic controls, instruments and compartments. Provides protection from dust, oil and water. For outdoor application a drip shield and drain vent is recommended.
Finish
Finish
ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.
Industry Standards
Industry Standards
- NEMA Type 3R, 12 and Type 13
- UL Listed Type 3R and 12
- CSA Type 3R and 12
- IEC 60529
- IP 55
NEMA Rating for
+
| Environments | Type 1 | Type 12 | Type 3R | Type 4 | Type 4X |
|---|---|---|---|---|---|
| Indoor use only | |||||
| Indoor and outdoor use | |||||
| Falling liquids and light splashes | |||||
| Nonhazardous dust, lint, and fibers | |||||
| Washdowns and splashing water | |||||
| Oil and coolant seepage | |||||
| Corrosive agents | |||||
|
Hazardous locations (Class I, Division 1 and 2) |
