NEMA Rating
Construction

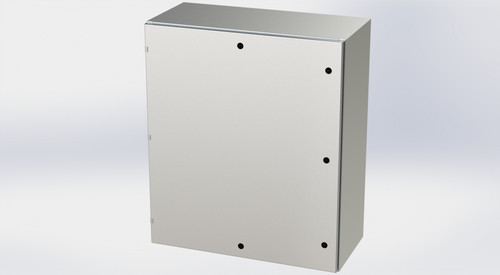

SCE-42EL3616LP Saginaw Control & Engineering 42 x 36 x 16 EL Enclosure
- 0.075 In. carbon steel.
- Seams continuously welded and ground smooth.
- Flange trough collar around all sides of door opening.
- Pour in place oil & water resistant gasket
- Collar studs 3/8-16 provided for mounting optional panels.
- Concealed hinges.
- Removable and interchangeable doors.
- Black quarter turn latches.
- Latches are opened or closed with a screwdriver.
- Mounting holes in back of enclosure.
- Mounting hardware, sealing washer and hole plug included.
- Removable print pocket furnished if height and width of enclosure is greater than 12 inches.
- Ground studs on door and body.
Application
SCE-42EL3616LP Saginaw Control & Engineering 42 x 36 x 16 EL Enclosure
Designed to house electrical and electronic controls, instruments and components. Provides protection from dust, oil and water. For outdoor application a drip shield and drain vent is recommended.
Options
SCE-42EL3616LP Saginaw Control & Engineering 42 x 36 x 16 EL Enclosure
- Optional tamper-resistant inserts are available.
- Optional mounting feet available.
- Door hardware available.
- Interchangeable latches and handles available in the accessory section.
Finish
SCE-42EL3616LP Saginaw Control & Engineering 42 x 36 x 16 EL Enclosure
ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.
Industry Standards
SCE-42EL3616LP Saginaw Control & Engineering 42 x 36 x 16 EL Enclosure
- NEMA Type 3R, 4, 12 and Type 13
- UL Listed Type 3R, 4 and 12
- CSA Type 3R, 4 and 12
- IEC 60529
- IP 66
