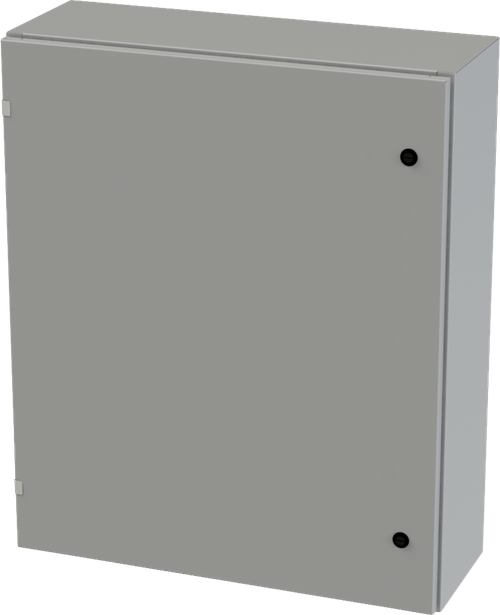

SCE-36EL3010LP Saginaw Control and Engineering 36in x 30in x 10in Carbon Steel Enclosure with Hinged Cover and Quarter Turn Latches
Representative image shown

SCE-36EL3010LP

Carbon Steel Enclosure with Hinged Cover and Quarter Turn Latches

$516.21
Factory New

Saginaw, EL Enclosure, 0.075 In. carbon steel, Black quarter turn latches, 36x30x10, NEMA Type 3R, 4, 12 and Type 13

SCE-36EL3010LP Saginaw Control and Engineering 36in x 30in x 10in Carbon Steel Enclosure with Hinged Cover and Quarter Turn Latches
Representative image shown

Trusted Accessories

- +

Versions (4)

Product Details
SKU:
SCE-36EL3010LP
Weight:
89.00 LBS
Width:
30.00 in
Height:
36.00 in
Depth:
10.00 in
Dimensions:
36in x 30in x 10in
Material:
Carbon Steel
Enclosure Type:
Wall Mounted
Cover Type:
Opaque
Closure Type:
Quarter Turn Latch
Mounting Type:
Through Holes
  • Construction
  • Application
  • Finish
  • Standards

Construction

Construction
  • 0.075 In. carbon steel.
  • Seams continuously welded and ground smooth.
  • Flange trough collar around all sides of door opening.
  • Pour in place oil & water resistant gasket
  • Collar studs 3/8-16 provided for mounting optional panels.
  • Concealed hinges.
  • Removable and interchangeable doors.
  • Black quarter turn latches.
  • Latches are opened or closed with a screwdriver.
  • Mounting holes in back of enclosure.
  • Mounting hardware, sealing washer and hole plug included.
  • Removable print pocket furnished if height and width of enclosure is greater than 12 inches.
  • Ground studs on door and body.

Application

Application

Designed to house electrical and electronic controls, instruments and components. Provides protection from dust, oil and water. For outdoor application a drip shield and drain vent is recommended.

Finish

Finish

ANSI-61 gray powder coating inside and out.

Standards

Standards
  • NEMA Type 3R, 4, 12 and Type 13
  • UL Listed Type 3R, 4 and 12
  • CSA Type 3R, 4 and 12
  • IEC 60529
  • IP 66

NEMA Rating for

Nema active
N1
Indoor
Protection from fingers, tools and small objects
Nema active
N12
Indoor
Protection from dust and light splashes of water
Nema active
N3R
Outdoor
Protection from rain, snow and sleet
Nema active
N4
Outdoor
Protection from rain, snow, sleet, and hose directed water
Nema not active
N4X
Outdoor
Protected from rain, snow, sleet, and pressure rated hose directed water from all angles
N1 graphic N12 graphic N3R graphic N4 graphic N4X graphic
+
Environments Type 1 Type 12 Type 3R Type 4 Type 4X
Indoor use only
Indoor and outdoor use
Falling liquids and light splashes
Nonhazardous dust, lint, and fibers
Washdowns and splashing water
Oil and coolant seepage
Corrosive agents
Hazardous locations
(Class I, Division 1 and 2)
