- SKU:
- SCE-2PBX-RAL1018
- Weight:
- 3.00 LBS
- Width:
- 4.00 in
- Height:
- 6.00 in
- Depth:
- 4.75 in
- Dimensions:
- 6in x 4in x 4.75in
- Material:
- Carbon Steel
- Enclosure Type:
- Wall Mounted
- Closure Type:
- Screw Cover

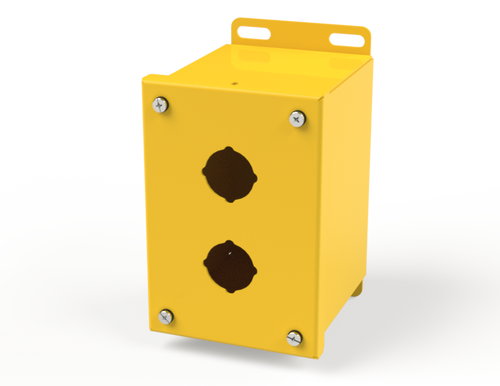

Representative image shown
SCE-2PBX-RAL1018
Carbon Steel 2-Hole Pushbutton Enclosure with Screw Cover
$83.24
Factory New
Saginaw Control & Engineering
Saginaw Control and Engineering, PBX enclosure, 0.063 In. carbon steel, 4-way standard pushbutton hole, Captivated cover screws thread into sealed wells, NEMA Type 4, 12 and Type 13
Representative image shown
Versions (6)
Product Details
Complete Your Build
verified
Verified fit
These products are compatible with the
Plugs
Build My Enclosure
Total price: $0
Construction
Construction
- 0.063 In. carbon steel.
- Continuously welded seams.
- Captivated cover screws thread into sealed wells.
- 4-way standard pushbutton holes accept all brands of oil-tight pushbuttons, switches, and pilot lights. Hole diameter is 1.20 In. (30.5mm).
- Pour in place oil & water resistant gasket
- Welded mounting provision top and bottom of back.
Application
Application
Designed to offer protection for oil-tight pushbuttons, switches, and pilot lights from dust, water, dirt and oil.
Finish
Finish
RAL 1018 Yellow powder coat inside and out.
Industry Standards
Industry Standards
- NEMA Type 4, 12 and Type 13
- UL Listed Type 4 and 12
- CSA Type 4 and 12
- IEC 60529
- IP 66
NEMA Rating for
+
| Environments | Type 1 | Type 12 | Type 3R | Type 4 | Type 4X |
|---|---|---|---|---|---|
| Indoor use only | |||||
| Indoor and outdoor use | |||||
| Falling liquids and light splashes | |||||
| Nonhazardous dust, lint, and fibers | |||||
| Washdowns and splashing water | |||||
| Oil and coolant seepage | |||||
| Corrosive agents | |||||
|
Hazardous locations (Class I, Division 1 and 2) |
