- SKU:
- SCE-24K2412SSST
- Weight:
- 66.00 LBS
- Width:
- 24.00 in
- Height:
- 24.00 in
- Depth:
- 12.00 in
- Dimensions:
- 24in x 24in x 12in

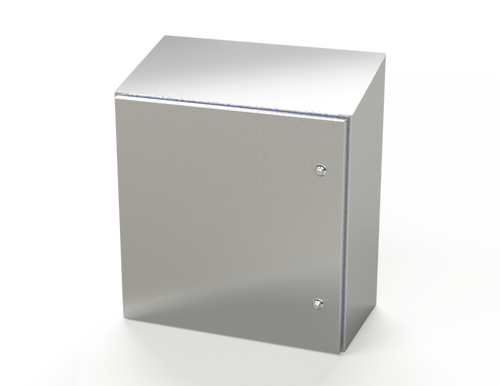

Representative image shown
SCE-24K2412SSST
S.S. Sanitary Sloping Top Enclosure
$2,184.86
Factory New
Saginaw Control & Engineering
Representative image shown
Product Details
Complete Your Build
verified
Verified fit
These products are compatible with the
Inner Panels
Ventilation
Mounting
Build My Enclosure
Total price: $0
Construction
Construction
SCE-24K2412SSST Saginaw Control & Engineering 24 x 24 x 12 S.S. Sanitary Sloping Top Enclosure
- 0.075 In. stainless steel Type 304
- Seams continuously welded and ground smooth
- 15 degree sloped top
- Internal swing out hinges
- Doors open 110 degree
- Stainless sanitary quarter turn latches with FDA - Grade silicone gasket
- Pour in place oil & water resistant inner gasket
- FDA - Grade silicone outer gasket
- Provision for mounting optional panels
- Mounting holes in back of enclosure for optional mounting stand-off or mounting options
- Ground stud on door & body
- DIN 40050-9, IP69K
- ANSI 3A 00-01 Sanitary Standard for General Requirements
- NSF 169 Special Purpose Food Equipment and Devices
Application
Application
SCE-24K2412SSST Saginaw Control & Engineering 24 x 24 x 12 S.S. Sanitary Sloping Top Enclosure
Designed to withstand high pressure and high temperature washdown procedures with direct and indirect food contact applications within the Food & Beverage industry. Enclosure is designed with internal swing-out hinges to reduce bacteria catch points and helps to maximize back panel space. Includes dual gasket design that ensures it performs in extreme applications. Inner Pour in place oil & water-resistant gasket with an easily replaceable outer gasket - FDA-grade silicone gasket that helps resist bacteria growth and chemical absorption.
Finish
Finish
SCE-24K2412SSST Saginaw Control & Engineering 24 x 24 x 12 S.S. Sanitary Sloping Top Enclosure
# 4 Brushed finish 25-35 RA suitable for medical and food industry.
Industry Standards
Industry Standards
SCE-24K2412SSST Saginaw Control & Engineering 24 x 24 x 12 S.S. Sanitary Sloping Top Enclosure
- NEMA Type 3R, 4, 4X, 12 and Type 13
- UL Listed Type 3R, 4, 4X and 12
- CSA Type 4, 4X and 12
- IEC 60529
- IP 69
NEMA Rating for
+
| Environments | Type 1 | Type 12 | Type 3R | Type 4 | Type 4X |
|---|---|---|---|---|---|
| Indoor use only | |||||
| Indoor and outdoor use | |||||
| Falling liquids and light splashes | |||||
| Nonhazardous dust, lint, and fibers | |||||
| Washdowns and splashing water | |||||
| Oil and coolant seepage | |||||
| Corrosive agents | |||||
|
Hazardous locations (Class I, Division 1 and 2) |
