- SKU:
- SCE-24H2412LP
- Weight:
- 56.00 LBS
- Width:
- 24.00 in
- Height:
- 24.00 in
- Depth:
- 12.00 in
- Dimensions:
- 24in x 24in x 12in
- Material:
- Carbon Steel
- Enclosure Type:
- Wall Mounted
- Cover Type:
- Opaque
- Closure Type:
- Hasp and Staple
- Mounting Type:
- Metal Feet

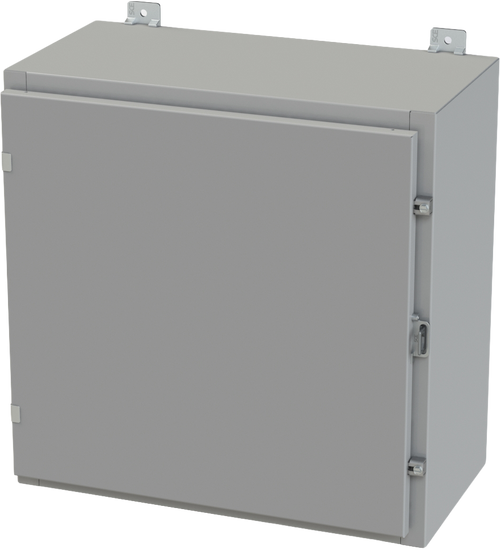

Representative image shown
SCE-24H2412LP
Type 4 Carbon Steel Enclosure with Hinged Cover and Hasp and Staple
$399.38
Factory New
Saginaw Control & Engineering
Saginaw Control and Engineering, Nema 4 LP Enclosure, 0.075 In. carbon steel, Hasp and staple for padlocking, NEMA Type 3R, 4, 12 and Type 13
Representative image shown
Trusted Accessories
Product Details
Construction
Construction
SCE-24H2412LP Saginaw Control & Engineering 24 x 24 x 12 Nema 4 LP Enclosure
- 0.075 In. carbon steel.
- Seams continuously welded and ground smooth.
- Flange trough collar around all sides of door opening.
- Door clamps are quick and easy to operate.
- Concealed hinge.
- Hasp and staple for padlocking.
- Pour in place oil & water resistant gasket
- Collar studs 3/8-16 provided for mounting optional panels.
- Ground stud on door.
- Removable print pocket furnished if height and width of enclosure is greater than 12 inches.
- External mounting provision top and bottom of back.
Application
Application
SCE-24H2412LP Saginaw Control & Engineering 24 x 24 x 12 Nema 4 LP Enclosure
Designed to house electrical and electronic controls, instrument, and components. Provides protection from dust, dirt, oil and water. For outdoor application a drip shield and drain vent is recommended.
Finish
Finish
SCE-24H2412LP Saginaw Control & Engineering 24 x 24 x 12 Nema 4 LP Enclosure
ANSI-61 gray powder coating inside and out. Optional panels are powder coated white.
Industry Standards
Industry Standards
SCE-24H2412LP Saginaw Control & Engineering 24 x 24 x 12 Nema 4 LP Enclosure
- NEMA Type 3R, 4, 12 and Type 13
- UL Listed Type 3R, 4 and 12
- CSA Type 3R, 4 and 12
- IEC 60529
- IP 66
NEMA Rating for
+
| Environments | Type 1 | Type 12 | Type 3R | Type 4 | Type 4X |
|---|---|---|---|---|---|
| Indoor use only | |||||
| Indoor and outdoor use | |||||
| Falling liquids and light splashes | |||||
| Nonhazardous dust, lint, and fibers | |||||
| Washdowns and splashing water | |||||
| Oil and coolant seepage | |||||
| Corrosive agents | |||||
|
Hazardous locations (Class I, Division 1 and 2) |
