- SKU:
- SCE-16H1606SS6LP
- Weight:
- 26.00 LBS
- Width:
- 16.00 in
- Height:
- 16.00 in
- Depth:
- 6.00 in
- Dimensions:
- 16in x 16in x 6in
- Material:
- Stainless Steel
- Enclosure Type:
- Wall Mounted
- Cover Type:
- Opaque
- Closure Type:
- Hasp and Staple
- Mounting Type:
- Metal Feet

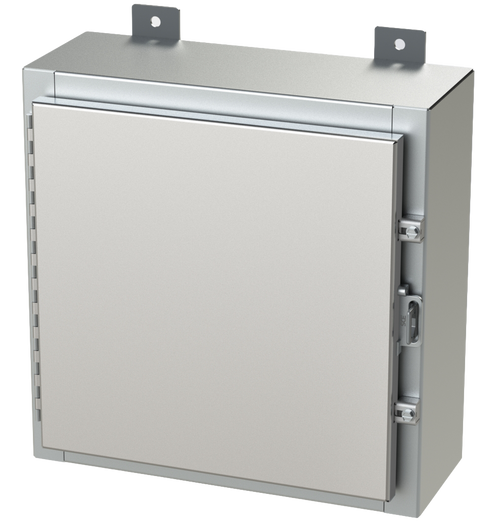

Representative image shown
SCE-16H1606SS6LP
Stainless steel enclosure with hinged cover and hasp and staple for padlocking
$798.74
Factory New
Saginaw Control & Engineering
Saginaw Control and Engineering, Nema 4X LP Enclosure, 16x16x6, 0.075 In. stainless steel Type 316/316L, Hasp and staple for padlocking, NEMA Type 3R, 4, 4X, 12 and Type 13
Representative image shown
Trusted Accessories
Versions (11)
Product Details
Complete Your Build
verified
Verified fit
These products are compatible with the
Inner Panels
Ventilation
Drip Shields
Hardware
Build My Enclosure
Total price: $0
Construction
Construction
- 0.075 In. stainless steel Type 316/316L.
- Continuously welded seams ground smooth.
- Flange trough collar around all sides of door opening.
- Pour in place oil & water resistant gasket
- Collar studs 3/8-16 provided for mounting optional subpanels.
- Hasp and staple for padlocking.
- Stainless steel continuous hinges.
- Removable print pocket furnished if height and width of enclosure is greater than 12 Inches.
- Ground stud on door.
- Stainless steel clamps on three sides door when greater than 30 inch wide.
- Welded mounting provision top and bottom of back.
Application
Application
Designed to house electrical and electronic controls, instruments and components in areas which may be regularly hosed down or are very wet conditions. Provides protection from dust, dirt, oil and water. For outdoor application a drip shield and drain vent is recommended.
Finish
Finish
#4 brushed finish on all exterior surfaces. Optional sub-panels are powder coated white.
Industry Standards
Industry Standards
- NEMA Type 3R, 4, 4X, 12 and Type 13
- UL Listed Type 3R, 4, 4X and 12
- CSA Type 4, 4X and 12
- IEC 60529
- IP 66
NEMA Rating for
+
| Environments | Type 1 | Type 12 | Type 3R | Type 4 | Type 4X |
|---|---|---|---|---|---|
| Indoor use only | |||||
| Indoor and outdoor use | |||||
| Falling liquids and light splashes | |||||
| Nonhazardous dust, lint, and fibers | |||||
| Washdowns and splashing water | |||||
| Oil and coolant seepage | |||||
| Corrosive agents | |||||
|
Hazardous locations (Class I, Division 1 and 2) |
