- SKU:
- HCT363611H
- UPC:
- 623980104478
- Weight:
- 135.00 LBS
- Width:
- 36.57 in
- Height:
- 36.05 in
- Depth:
- 12.18 in
- Dimensions:
- 36in x 36in x 11in
- Material:
- Galvanized Steel
- Enclosure Type:
- Wall Cabinet
- Cover Type:
- Opaque
- Closure Type:
- Hasp and Screws
- Mounting Type:
- Through Holes

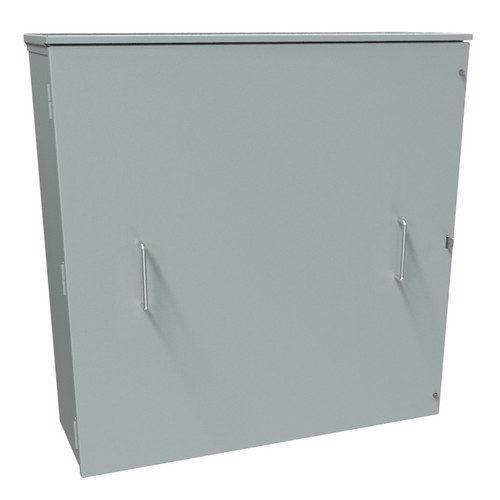

Representative image shown
HCT363611H
Type 3R Current Transformer Enclosure with Single Door
$552.67
Factory New
Hammond Manufacturing
Hammond, HCT Series, Type 3R Current Transformer Cabinet, Single Door Enclosure, 3R CT CABINET 36x36x11, UL 508A Type 3R, Single door design with hasp/screw closure
Representative image shown
Trusted Accessories
Versions (8)
Product Details
Complete Your Build
verified
Verified fit
These products are compatible with the
Inner Panels
Ventilation
Hardware
Build My Enclosure
Total price: $0
Application
Application
- Designed for use as Current Transformer Box to house and protect instrument current transformers in outdoor applications.
- Can also be used as a general purpose enclosure for various junction, meter, transformer and relay applications..
- Provides protection against rain, sleet, snow and dripping water.
Standards
Standards
- UL 508A Type 3R
- Complies with
- NEMA Type 3R
- IEC 60529, IP24
Construction
Construction
- Body and covers formed from 14 gauge galvanized steel (12 gauge for units 30" and wider)
- Mounting studs for optional inner panels
- Integral drip shield top and seam free sides
- Mounting holes provided through back of enclosure
- Permanently installed lift off hinges
- Removable doors
- Single door design with hasp/screw closure. Double door design with handle.
- Padlocking provisions provided
- ANSI 61 Gray Polyester Powder finish inside and outside
Finish
Finish
- Cover and enclosure are phosphatized and finished with a recoatable ANSI 61 smooth Gray powder inside and out.
NEMA Rating for
+
| Environments | Type 1 | Type 12 | Type 3R | Type 4 | Type 4X |
|---|---|---|---|---|---|
| Indoor use only | |||||
| Indoor and outdoor use | |||||
| Falling liquids and light splashes | |||||
| Nonhazardous dust, lint, and fibers | |||||
| Washdowns and splashing water | |||||
| Oil and coolant seepage | |||||
| Corrosive agents | |||||
|
Hazardous locations (Class I, Division 1 and 2) |
